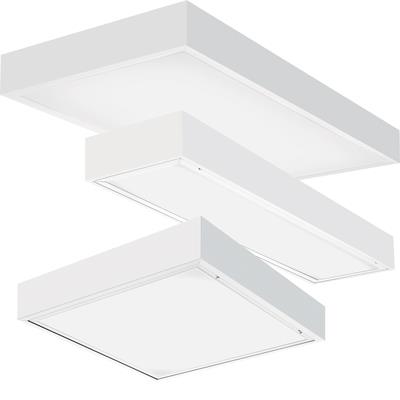

The T Series LED surface-mount troffer combines digital lighting and controls technologies with a high-performance optical system to deliver general ambient lighting.
Ideal for commercial applications including offices, schools and hospitals. The high-efficacy light engine delivers long life and excellent color, ensuring a lighting installation that is efficient and sustainable.
Designed exclusively for use with LED Smooth hemmed sides and smooth, inward formed end flanges for safe handling. Lighter weight fixture allows safe, easy installation. Standard steel door frame has superior structural integrity with premium extruded appearance and precision flush mitered corners. Powder painted, steel latches provide easy, secure door closure. Superior mechanical light seal requires no foam gasketing. Integral T-bar clips secure fixture to T-bar system. Housing formed from cold-rolled steel. Acrylic shielding material 100% UV stabilized. No asbestos is used in this product.
Finish: Five-stage iron-phosphate pretreatment ensures superior paint adhesion and rust resistance. Painted parts finished with high-gloss, baked white enamel.
Standard pattern #19 lens, 0.156" thick with highly transmissive overlay, is standard for superior brightness control. Overlay is 0.040" thick. Other lenses are available.
Long-life LEDs, coupled with high-efficiency drivers, provide superior level and quality of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).
Standard nLight® embedded controls continuously monitor system performance, allow for constant lumen management/compensation function, facilitate simple "plug-and-play" network and controls upgrading via CAT5 cable. LED driver delivers full-range dimming from 0-10V control signal. Ballast disconnect is provided where required to comply with US and Canadian codes.
Surface mount. Drivers and internal components are accessible from floor. LED boards include plug-in connectors for easy replacement or servicing. Suitable for damp location.
|Brand Name||Lithonia Lighting|
|Color Rendering Index||80|
|Correlated Color Temperature||3000 K, 3500 K, 4000 K, 5000 K|
|Listings||CSA, DLC Premium, DLC Standard|
|Lumen Output||2000 LM, 3000 LM, 3300 LM, 4000 LM, 4800 LM, 6000 LM, 7200 LM|
|Product Type||Surface Light|
|Series||2TLX2, 2TLX4, TLX4|
|Voltage Rating||120, 277, 347|
