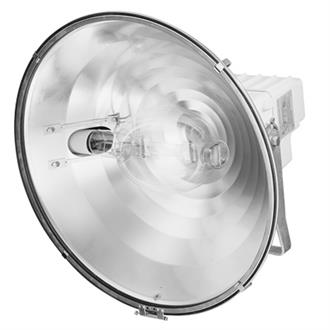

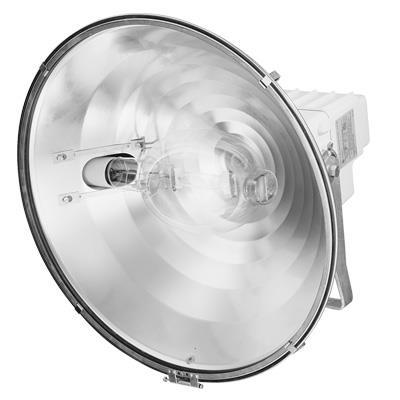

Architectural Tru-Sport Sportslighting HID Outdoor

For stadiums, fields, arenas, tracks or courts.


Housing: Two-piece, die-cast aluminum ballast housing mounted to steel trunnion. Removable ballast is hinged with captive fastener. Steel trunnion features both vertical and horizontal aiming scale with vertical repositioning stop. Standard finish is white (DWH) corrosion-resistant polyester powder. Additional architectural colors available; see www.lithonia.com/archcolors.


Heavy-gauge anodized reflector with five distributions available. Transverse mounting of lamp. Lamp support included. Optical chamber is sealed to inhibit entrance of contaminants. Heavy-duty hinged lens is thermal-resistant, shock-resistant and impact-resistant tempered glass. Lens frame is secured by spring clips for servicing of lamp. "Flux manager" (NFX, WFX, MFX) available for optimal glare and spill light control. Choice of general purpose or heavy-duty (shrouded) reflectors.


All electrical components are thermally isolated from optical assembly, promoting longer life. All ballasts are 100% factory tested. Constant wattage autotransformer 400W and above. Super CWA Pulse Start ballast, 88% efficient and EISA legislation compliant, is required for 400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S.

Socket: Die-cast socket housing. Porcelain, mogul-base socket with copper alloy, nickel-plated screw shell and spring-loaded center contact. UL Listed 1500W-600V, 4KV pulse rated.


Fixture is mounted by securing trunnion directly to crossarm. Mounting hardware is provided. Below horizontal aiming only. All external hardware is treated for corrosion resistance.

Product overview and specifications
Brand Name Lithonia Lighting
Color Black, Bronze, Gray, Green, Red, Silver
Color Rendering Index 65
Correlated Color Temperature 3700 K, 4000 K
Environment Outdoor
Finish Gloss, Textured
Light Source HID - Metal Halide
Listings UL
Lumen Output 28,000 LM
Mounting Type Pole Mount
Product Type Floodlight
Series TSP
Shape Round
Voltage Rating 120, 208, 240, 277, 347, 480
