SSS

Square Straight Steel

Square straight steel general purpose pole for up to 39-foot mounting heights.

Construction

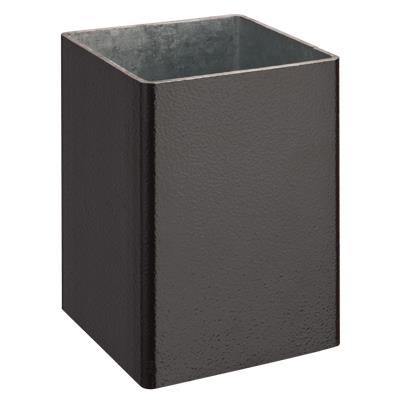

Shaft: Weldable grade, hot-rolled, commercial-quality carbon steel tubing with a minimum yield of 55,000 psi (11-gauge) or 50,000 psi (7-gauge). Uniform wall thickness of .125" or .188". Shaft is one piece with a full-length longitudinal high-frequency electric resistance weld. Uniformly square in cross-section with flat sides, small corner radii and excellent torsional qualities. Available shaft widths are 4, 5 and 6 inches.

Anchor base: Fabricated from hot-rolled carbon steel plate conforming to ASTM A36 that meets or exceeds a minimum-yield strength of 36,000 psi. Base plate and shaft are circumferentially welded top and bottom.

Anchor bolts: Fabricated from carbon steel bar with minimum-yield strength of 55,000 psi. Bolts have an "L" bend on lower end and are galvanized a minimum of 12 inches on the threaded end per ASTM A-153. Each anchor bolt is furnished with two hex nuts and two flat washers.

Grounding: Provision located inside hand hole rim. Grounding hardware is not included (provided by others).

Hand hole: Reinforced hand-hole rim having nominal dimensions of 3" x 5" for all shafts. Includes steel cover with attachment screws.

Hardware: All fasteners are high-strength, galvanized or zinc-plated or stainless steel.

Top cap: Removable top cap provided with drill-mount poles.

Base cover: Includes full-base cover finished to match pole.

Finish: Must specify finish.

Other

Check out POLESCENTRAL for additional resources and solutions.

Specifications
Product overview and specifications
Brand Name Lithonia Lighting
Color Almond, Beige, Black, Blue, Bronze, Brown, Gray, Green, Red, Silver, White, Yellow
Environment Outdoor
Finish Gloss, Textured
Listings UL
Mounting Type Anchor Based, Direct Burial
Pole Base Shape Square
Pole Base Size 4, 5, 6
Pole Shaft Shape Square
Pole Shaft Style Straight
Product Type Pole
Series SSS, SSSDB
Spec Sheets
A summary of the performance and other technical characteristics of the product.
File Type Document Title View
POLE-SSS_PDF View
POLE-SSSDB_PDF View
