Lithonia Lighting

LDN6 Round Series

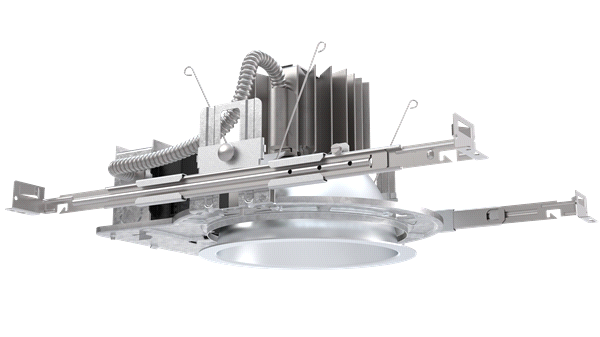

LDN6 Round – 6” Open and Wallwash
    Switchable LumensSwitchable CCTsCA Title 24/JA8Buy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 4000 LM, 5000 LM, Switchable
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80, 90
Product Type Downlight
Compliance Listing BAA and BABA, CA Title 24, Chicago Plenum, Low UGR
Environmental Listing ASTM Airtight, IC, Non-IC, Wet Location
Regulatory Listing CSA, cUL
Control Platform nLight AIR G2, nLight Wired, Wireless SensorSwitch AIR
Dimming Protocol 0-10V, DALI, Electronic Low Voltage, Triac
Fixture Wattage 10, 10.4, 11, 11.2, 11.3, 11.6, 11.9, 12.8, 13.4, 13.5, 14.2, 14.3, 14.5, 14.8, 14.9, 15.5, 15.8, 16.4, 17.5, 18, 18.8, 19, 20.2, 20.3, 20.5, 21, 21.8, 22.5, 24.1, 25, 25.5, 25.6, 27, 27.1, 28.3, 28.6, 28.7, 29.5, 31, 31.3, 31.7, 32, 33.1, 33.2, 34.7, 34.8, 35.4, 37.5, 37.6, 37.8, 38.8, 39, 39.1, 40, 40.5, 40.6, 41.5, 43, 44, 44.3, 46, 46.5, 47.3, 47.5, 49, 5.8, 50, 51, 52, 53, 54, 55, 56, 58, 6.8, 61, 8, 8.2, 8.3, 8.53, 8.8, 8.9, 9, 9.75, 9.8
Voltage Rating 120, 120-277, 277, 347
Trim Style Cone, Open, Single Wallwash
Color Black, Clear, White
Mounting Type Recessed
Series LDN6

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet 6" Open and Wallwash LED Downlight 6" Open and Wallwash LED Downlight 4/17/2025 View
    Spec Sheet LDN6 SWW.pdf 6” Round Open and Wallwash Switchable LED Downlight 4/17/2025 View
    Design Select

    Need to Configurator a Design Select Product  or Create a Submittal Spec Sheet?

    Take Me There
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet LDN6 30K 80CRI spectral Report.pdf LDN6 30K 80CRI 12/27/2023 View
    Spectral Data Sheet Spectral Data Sheet_LithoniaDownlighting_LDN6_35K_90CRI.pdf LDN6 35K 90CRI 8/10/2022 View
    Spectral Data Sheet Spectral Data Sheet_LithoniaDownlighting_LDN6_40K_90CRI.pdf LDN6 40K 90CRI 8/10/2022 View
    Spectral Data Sheet SpectralDataSheet_LithoniaDownlighting_LDN6_35K_80CRI.pdf LDN6 35K 80CRI 7/8/2024 View

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LBR-LDN-LDN Switchable Dimming Compatibility Dimming Compatibility Cheat Sheet 8/20/2020 View
    Installation Instructions 912-00205-001_LDN4-6 SWW Installation Instructions.pdf LDN4, LDN4SQ, LDN6 and LDN6SQ Round and Square Switchable New Construction LED Downlight 11/3/2020 View
    Installation Instructions 912-00219-001_LDN SWW CP Installation Instructions.pdf LDN4, LDN6 and LDN8 Round Switchable LED Downlight Supplemental for Chicago Plenum "CP" 12/10/2020 View
    Installation Instructions LDN 4 and 6 Installation Instructions.pdf LDN4, LDN4SQ, LDN6 and LDN6SQ Round and Square New Construction LED Downlight 1/5/2022 View
    Installation Instructions Sloped Ceiling Adapter CJ520663.pdf LDN4, LDN6 and LDN8 Round Sloped Ceiling Adapter "SCA" 10/20/2021 View
    Material Safety Data Sheet Nics-Sds.pdf MSDS 8/24/2020 View
    Material Safety Data Sheet PS1055CP-MSDS.pdf MSDS Chicago Plenum 8/24/2020 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Parts LDN6(SQ) Driver Repair Kit.pdf LDN6(SQ) Driver Repair Kit 9/6/2024 View
    Replacement Parts LDN6(SQ) Module Repair Kit.pdf LDN6(SQ) Module Repair Kit 9/6/2024 View
    Replacement Parts LDN6(SQ) Replacement Trim.pdf LDN6(SQ) Replacement Trim 9/6/2024 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures Commercial Downlighting Product Brochure LBR and LDN Commercial Downlighting Product Portfolio Brochure 1/30/2025 View
    Brochures Commercial Downlighting School Application Guide LBR and LDN in Williams High School Application Guide 10/10/2023 View
    Brochures LDN Family Brochure LDN Downlights, Switchable, Retrofits, & Cylinders 1/30/2025 View
    Sell Sheet Commercial Downlight Comparison Chart LBR and LDN Product Families Comparison Chart 1/30/2025 View
    Sell Sheet LDN Ceiling Height Flyer.pdf LDN Ceiling Height Flyer 8/3/2017 View
    Sell Sheet LDN Switchable Sell Sheet LDN SWW1 (Sell Sheet) 1/30/2025 View
