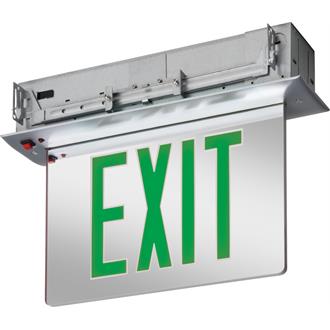

EDGR G_002.jpeg

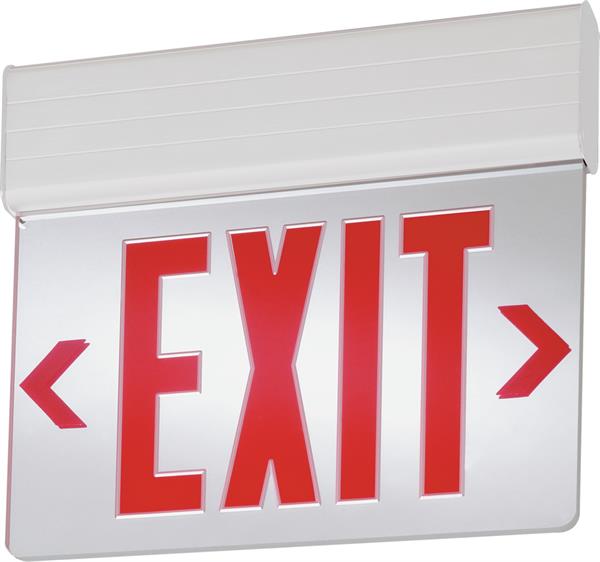

EDG W 1 R EL.jpeg

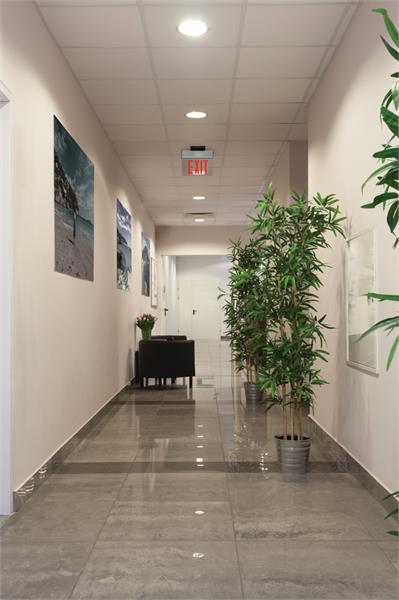

EDG R_Hallway.jpeg

EDG-EDGR

Surface and Recessed Mount Edge-Lit Exits with LED Lamps

By Lithonia Lighting

    CA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

The versatile EDG/EDGR edge-lit exits are well suited for any application requiring attractive edge-lit exit signage.

Typical installations include commercial spaces such as retail, offices or medical facilities but can be applied in any space where an upgraded appearance is desired.


- EDG (Surface-Mount): Extruded aluminum (standard) or white finish lamp housing encloses all electronics. - EDGR (Recessed-Mount): Extruded aluminum (standard) or white finish canopy covers the recessed, self-contained electronics. - Clear thermoplastic panels. Mirrored separator panel to simulate clear background. (Standard on double-face, optional for single-face.) - The typical exit LED lamp life is 10 years. - Low energy consumption: less than 3 watts for A/C only and less than five watts for battery back-up (EL option). - Dual voltage capability (120/277V). - Battery: (EL Option) - Sealed, maintenance-free nickel-cadmium battery delivers 90 minutes capacity to emergency lamps. - Self-diagnostic (EL Option Only) testing for 5 minutes every 30 days and 30 minutes every 180 days. - EDG (Surface Mount) - Universal surface (top, end, or back) mounting. Canopy provided. - EDGR (Recessed Mount) - Top mount ceiling - Universal directional indicators. Field selected and attached. Five-year limited warranty. Complete warranty terms located at Customer Resources: Terms and Conditions.

Click here for easy reference to our Edge-lit Emergency Exits.
Read More
Read Less
Shape Not Applicable
Light Source LED - Static
Lumens Not Applicable
Product Type Emergency Exit Sign
Compliance Listing BAA, CA Title 20
Regulatory Listing NFPA 101, UL
Fixture Wattage 3
Voltage Rating 120, 277
Color White
Mounting Type Recessed, Surface
Series EDG, EDGR

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Exit Stem Kits Exit Stem Kits 10/14/2020 View
    SPEC SHEET LED Edge-Lit Exits Surface and Recessed Mount LED Edge-Lit Exits EDG Surface and EDGR Recessed Mount 11/17/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions EMCSA00704_REV_D.pdf ELA USxx stem kit instruction sheet (Rev D, 4/2015) View
    Installation Instructions EMCSA00808 Rev E.pdf EDGR & EDGRNY New York, Recessed Installation instruction sheet, Rev E (Rev 11/2020) 7/8/2021 View
    Installation Instructions EMCSA00808_D EDGR & EDGRNY New York, Recessed Installation instruction sheet, Rev D (Rev 2.11.19) View
    Installation Instructions EMCSA00907_B EDG & EDG-NY (surface mount) - Installation instruction sheet- Emergency, non-Emergency, X2 (2.7.17) View
    Installation Instructions EMCSA00909_Rev A.pdf EDG_EDGR: Self-Diagnostics supplemental instruction sheet View
    Installation Instructions U999369 REV A.pdf Installation Guide to Convert from Ceiling to Wall Mount for EDGR and EDGRC 1/6/2021 View
    Material Safety Data Sheet 2015 SGS RoHS Test Report.PDF RoHS Test Report for Brushed Aluminum Paint Color (EDG-EDGR, EDGNY-EDGRNY, EDGC) View
    Material Safety Data Sheet Edge Lit Brushed Aluminum.pdf MSDS Paint Color for Brushed Aluminum (EDG-EDGR, EDGNY-EDGRNY, EDGC) View
    Material Safety Data Sheet Edge Lit MSDS White metallic paint.pdf MSDS Paint Color for White 12/9/2020 View
    Material Safety Data Sheet Edge Lit White metallic.pdf MSDS Paint Color for White (EDG-EDGR) 12/9/2020 View
    Material Safety Data Sheet Topa Ni-Cd.pdf SDS: EX_LED, ECB_LED, LXNY, LXC, LQC, WLTE, TLE, EDG, EDGR, EDGNY, WLTU LED, EU2L, ECC, EU2 LED, N1L View
