ELM2LF, 360 Image

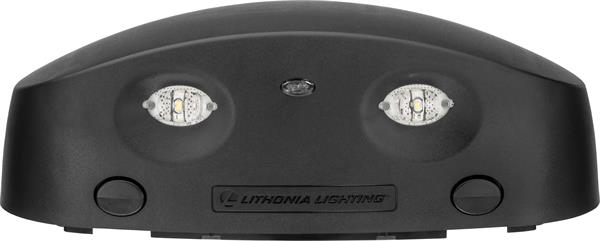

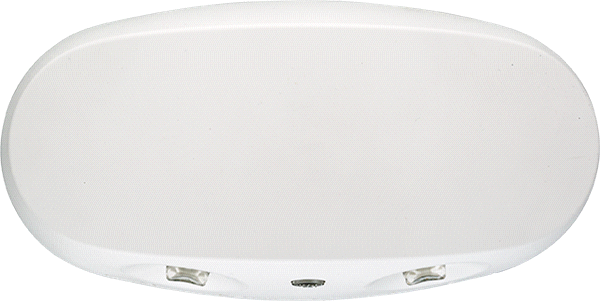

ELM2LF Emergency Light

Quantum® LED Fixed Optics 220 Lumens Emergency Light

By Lithonia Lighting

    CA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

The ELM2LF from Lithonia Lighting® is an aesthetically pleasing emergency LED light fixture. It provides a minimum of 90 minutes of illumination when there is a loss of power. Equipped with fixed lamp heads, no aiming is required for wall mount applications (mounting heights range from 7.5' to 10'), making installation easy while maintaining the maximum path of egress coverage. The linear pattern provides wide uniform distributions that deliver broad spacing up to 35' and low max to min ratios that far exceed code requirements.


The ELM2LF optional Lithium platform comes standard with universal input voltage (120-347 Volt). The upgraded Lithium Iron Phosphate battery provides a 3 hour run-time or 2.4 watts of remote capacity. Also, remote testing and self-diagnostics that meet and exceed code required testing while significantly reducing the time and cost of compliance. Plus, constant light output over the full discharge period.

  • STAR Self-Testing Automated Reporting option
Read More
Read Less
Light Source LED - Static
Lumens 220 LM
CCT / LED Color 5000 K
Product Type Emergency Lighting Unit
Compliance Listing BAA, CA Title 20
Environmental Listing Damp Location
Regulatory Listing C-UL-US, UL
Fixture Wattage 0.4, 0.62, 1.34, 1.64
Voltage Rating 120-347, 120/347, 220-240
Color White
Mounting Type Surface
Series ELM2LF

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ELA-WG.pdf Wire guards 11/28/2022 View
    SPEC SHEET ELM2L_ELM2LF.pdf ELM2L_ELM2LF Configurable LED emergency light 11/17/2022 View
    SPEC SHEET ELMRE.pdf LED Thermoplastic Emergency Remote 5/19/2022 View
    SPEC SHEET WPVS.pdf Wet Protection Vandal Shield (for ELMRE,ELM4L, ELM6L, ELM2L, ELM2LF series only) 1/24/2020 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 912-00029-001_Install Instr_WPVS_RevA.pdf WPVS installation instruction sheet View
    Installation Instructions 912-00048-001_Rev A.pdf Battery replacement instruction sheet for ELM2LF, ELM2L, ELM4L, ELM6L (Rev A, 12/2017) View
    Installation Instructions 912-00070-001_RevA.pdf RTKIT (Remote Tester Kit) instruction sheet (Rev A) View
    Installation Instructions ELM2LF NICAD STANDARD INSTALLATION INSTRUCTIONS 912-00026-005 REV C.pdf ELM2LF Emergency Lighting Unit, Nicad installation instruction sheet, Rev C 12/17/2021 View
    Installation Instructions ELM2LF_AELR_INSTALLATION-INSTRUCTIONS_912-00026-101.pdf ELM2LF, AELR (STAR) Instruction sheet, Rev H 12/20/2022 View
    Installation Instructions ELM2LF_INSTALLATION-INSTRUCTIONS_912-00026-001.pdf ELM2LF, LTP-Nicad SDRT, installation instruction sheet, Rev J 12/20/2022 View
    Material Safety Data Sheet SAFETY DATA SHEET(Ni-Cd)0110.pdf TWD_SDS sheet for ELB 3P61N, ELB 61N2, ELB615N (series 11 only) - Aug 2018 View
    Material Safety Data Sheet SAFTY DATA SHEET (Nicad) SDSRONDA001 A0.pdf Ronda_SDS sheet for ELB 3P61N, ELB 61N2, ELB615N (series 11 only) - Aug 2018 View
    Material Safety Data Sheet SDS-Lithium-Iron-Phosphate_9.6V-1500mAh-3S1P.pdf SDS sheet for ELB 9P615LTP, Lithium Iron Phosphate_9.6V 1.5AH 3/16/2022 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Quantum vs Contractor Select and other base products.pdf Compare Quantum to other products View
    FAQ Quantum Family FAQs.pdf Quantum Emergency Unit FAQs View
    FAQ Title 20 FAQs_.pdf California Title 20 FAQs View
    Sell Sheet ELM2LF and ELM2L Sell Sheet.pdf ELM2LF and ELM2L Sell Sheet View
    Sell Sheet LL_425438_Candian Emergency 1 Paper_QC_0820-hi.pdf Canadian Emergency One Pager 8/30/2020 View
    Sell Sheet LL_525584_Canada Remote Application_Guide_0820_web.pdf Canada Remote Application Guide 8/19/2021 View
    Sell Sheet Quantum ELMRE_ Sell Sheet.pdf Quantum ELMRE Remote Sell Sheet 8/19/2021 View
