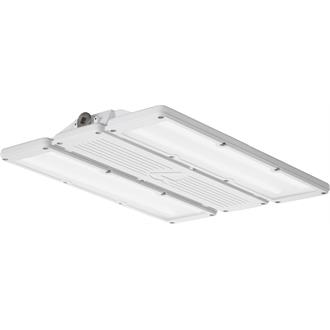

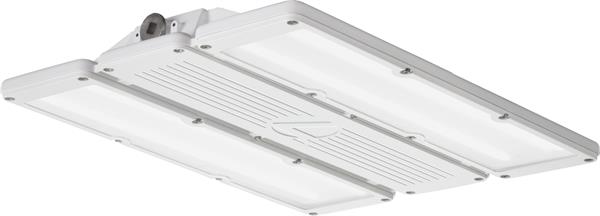

XIB L24 DWHXD_llluminated_014.jpeg

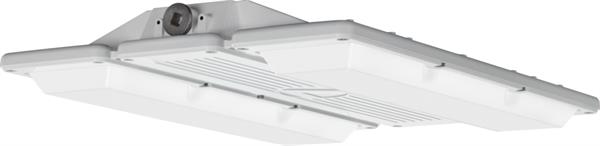

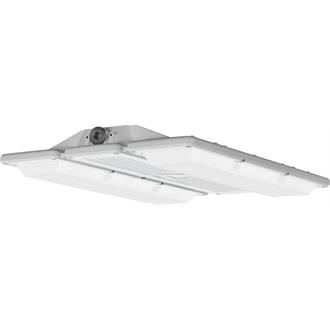

XIB L24 AVCL DWHXD_Illuminated_004.jpeg

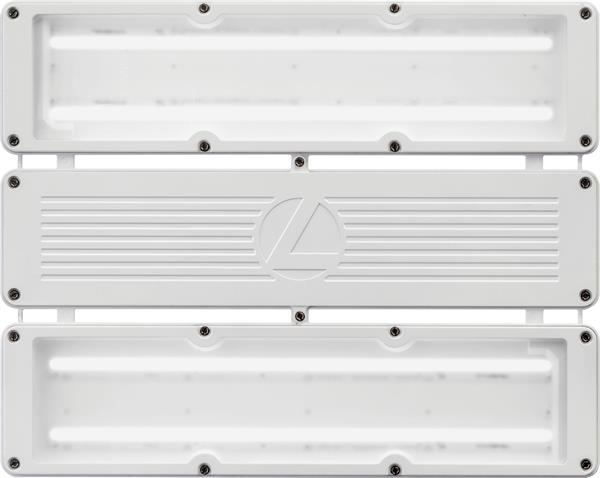

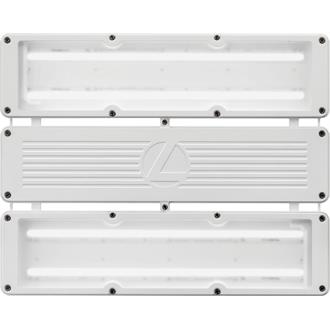

XIB L24 DWHXD_llluminated_013.jpg

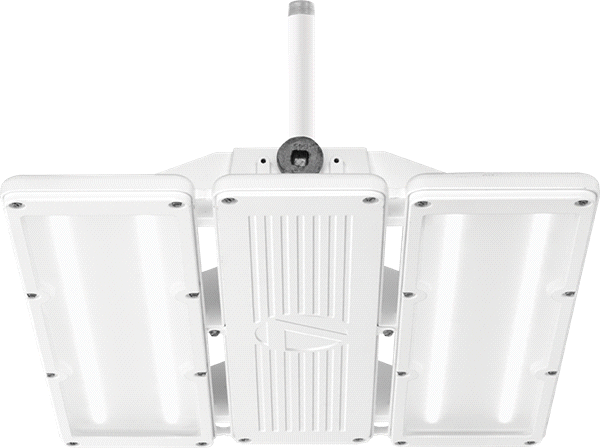

XIB L24 DWHXD_llluminated_012.png

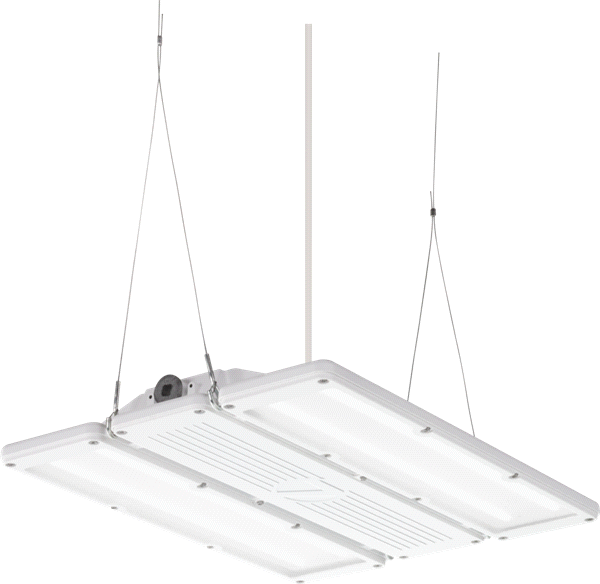

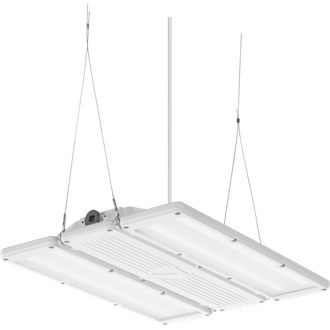

XIB L24 DWHXD_llluminated_002.png

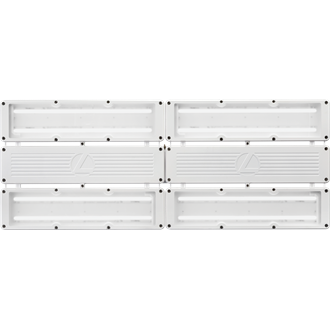

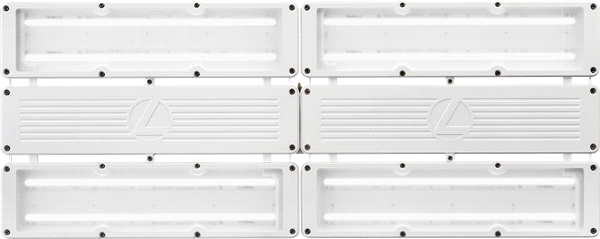

XIB L48 DWHXD_Illuminated_012.png

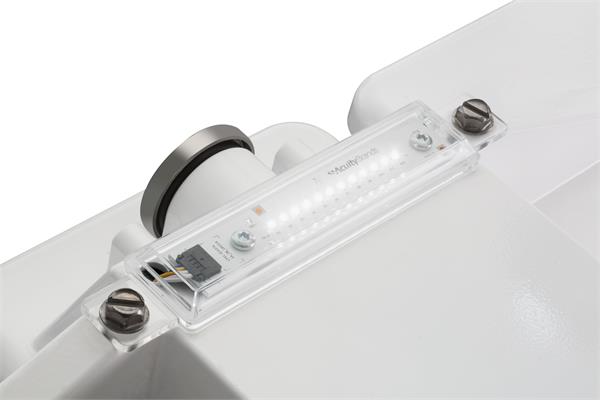

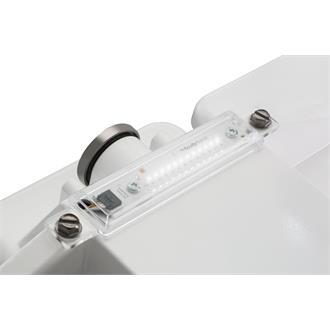

XIB L24 UPL DWHXD_Illuminated_Detail_001.jpg

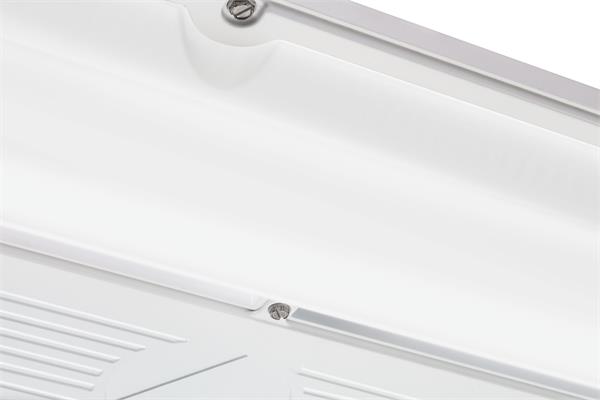

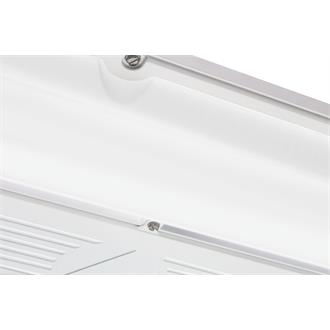

XIB L24 AVCL DWHXD_Illuminated_Detail.jpg

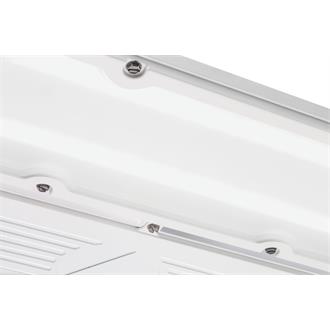

XIB L24 FRGL DWHXD_Illuminated_Detail.jpg

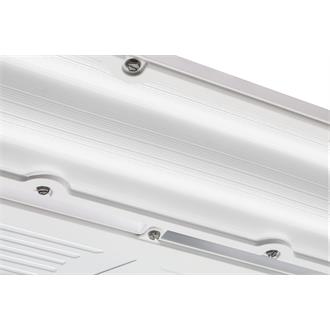

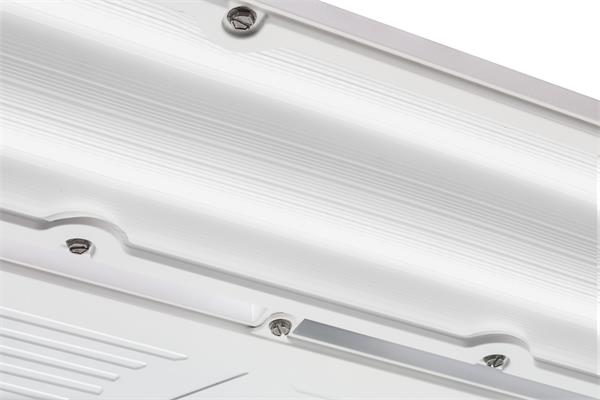

XIB L24 AT DWHXD_Illuminated_Detail.jpg

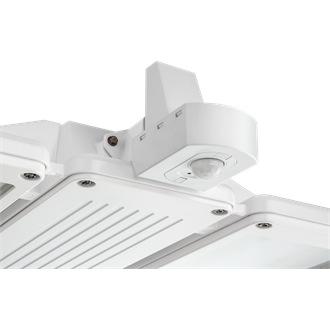

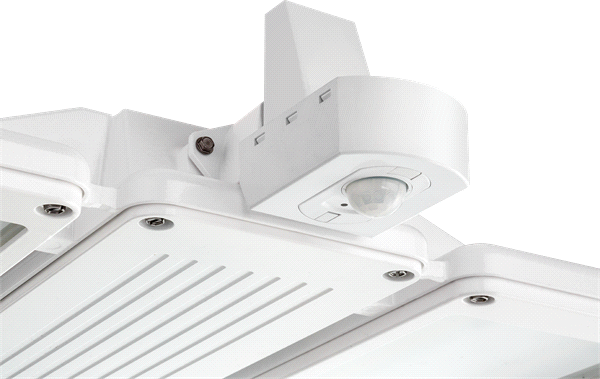

XIB LSX BTP DWHXD_Non-illuminated_Detail.png

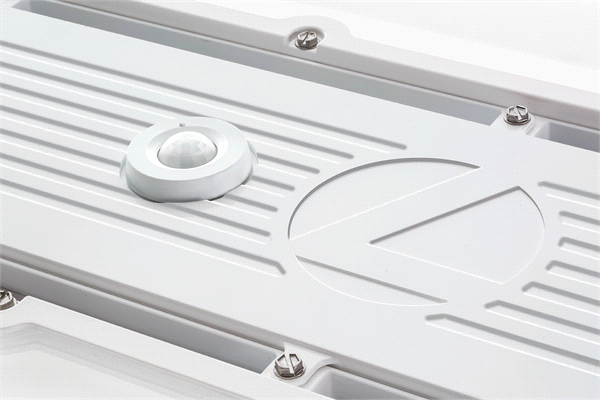

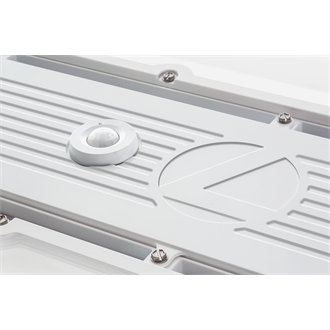

XIB NLTAIR2 RMSOD45 DWHXD_Illuminated_Detail.png

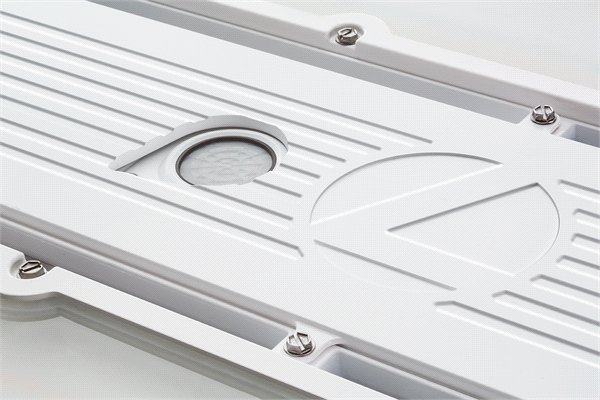

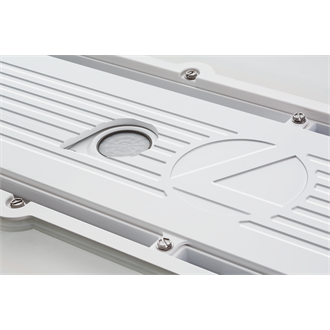

XIB SBGR6 DWHXD_Non-illuminated_Detail.png

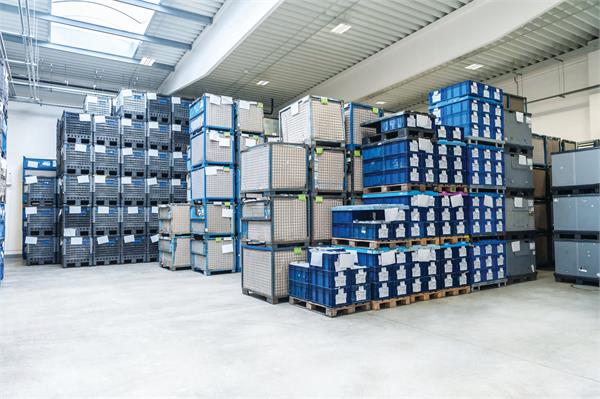

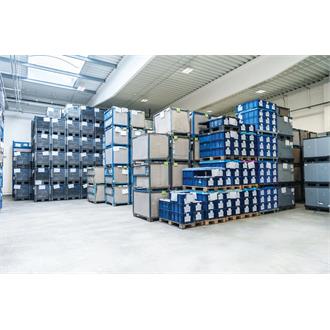

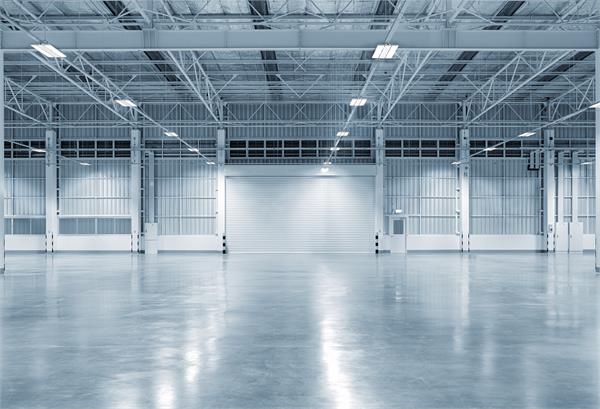

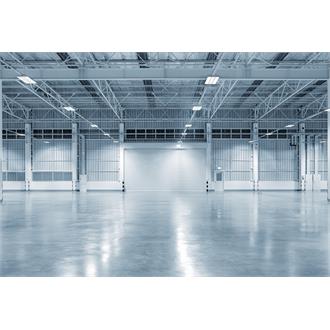

XIB L24 DWHXD_Warehouse_002.jpeg

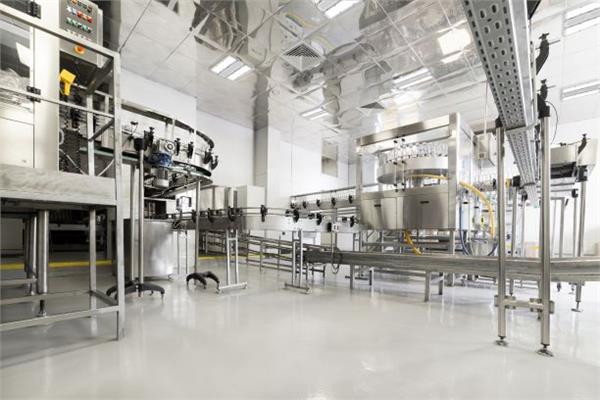

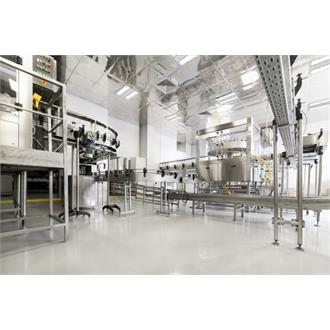

XIB_Cold Storage_Final_small.jpg

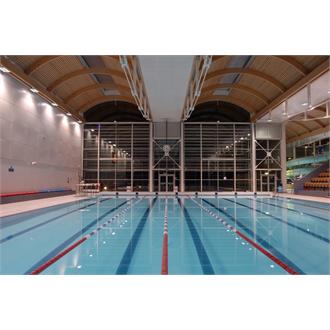

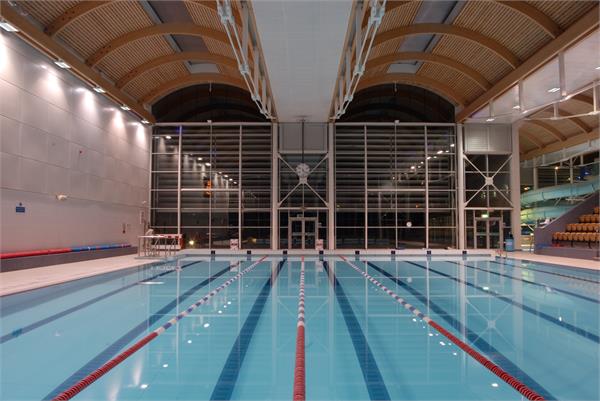

XIB Natatorium.jpg

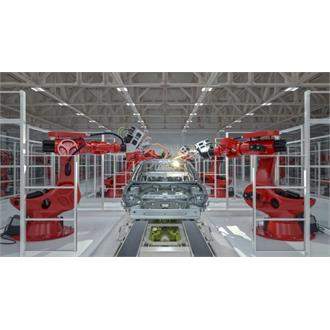

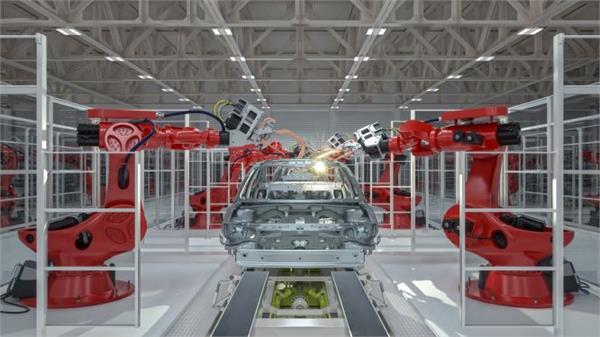

XIB Manufacturing Plant_small.jpg
Reintroducing the Award Winning, Heavy Hitting, XI

XIB High Bay

I-BEAM® XIB IP65 LED High Bay

By Lithonia Lighting

    DLC PremiumBuy America(n) Option Available
  • Overview
  • Specifications

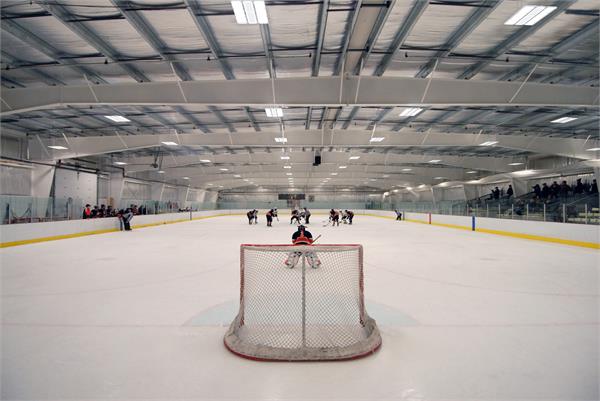

The XIB LED High Bay is designed and engineered to withstand medium-duty industrial environments. XIB is a fully sealed, wet location high bay in a linear form factor designed for warehousing, large indoor spaces, and gymnasiums as well as demanding environments such as manufacturing, service bays, packaging, ice rinks, under canopy, cold storage, natatoriums, and food service. The XIB is durable and powerful but maintains an aesthetic appeal that makes it suitable for even retail and commercial applications.

Optimize the next generation XIB LED high bay with best-in-class controls. Ordering the XIB with embedded controls supports code compliance and achieves energy and labor savings as well as rebate potential. nLight® networked lighting controls is the preferred controls solution for industrial high bays in hard to reach places.

Listings
  • 55°C listed standard with full light output
  • 10kV surge protection, standard
  • DLC Premium listed with configurations up to 170 LPW
  • IP65 Rated to protect electrical components and LEDs
  • NSF2 Splash Zone for food service
Key Specs
  • 12,000 to 42,000 lumens
  • L90 at 60,000 hours
  • 2’ and 4’ lengths
  • Rigid cast aluminum housing
  • Integrated emergency battery pack available
  • Glass/Acrylic and narrow/wide distribution lenses available
  • Suspended, pendant and surface mounting options available
  • Embedded controls maintain IP65 rating
Read More
Read Less
Size 2FT, 4FT
Shape Rectangular
Light Source LED - Static
Lumens 12,000 LM, 15,000 LM, 18,000 LM, 24,000 LM, 30,000 LM, 36,000 LM, 42,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Product Type High Bay
Compliance Listing BAA, DLC Premium, DLC Standard
Environmental Listing IP65, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 347, 347-480, 480
Color Black, Silver, White
Mounting Type Pendant, Surface, Suspended
Series XIB

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET XIB.pdf I-BEAM® LED IP65, Wet Location High Bay 4/20/2023 View
