The Lithonia Lighting® WPX LED Wall Pack Luminaire
WPX Install

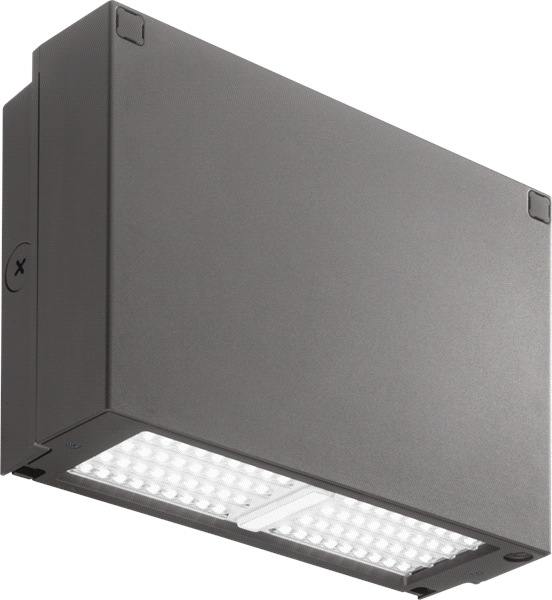

WPX2 LED Wall Mount

Size 2 - 6,000 lumens

By Lithonia Lighting

    CA Title 20
  • Overview
  • Specifications
WPX Wall Mount Luminaires are cost-effective and energy-efficient making them ideal for HID replacement and budget-constrained new construction projects.

The WPX family has four sizes with lumen packages of 850 to 9,200 lumens creating a solution that meets the needs of over-the-door lighting to 400W metal halide replacement at mounting heights of up to 20 feet. The simple geometric shape of the WPX luminaires allows them to blend with any architecture while the footprint covers the stain left by the fixture it replaces. The WPX features a wide light distribution that creates safe, continuous illumination of the perimeter of the building. Low initial cost, high energy savings, and DLC Premium listing enable fast paybacks, typically less than two years.

WPX Size 2 delivers 6,000 lumens making it ideal for perimeter lighting applications and mounting heights of up to 15 feet. The WPX2 can replace up to 250W metal halide while saving 84% energy costs. The WPX2 is available with self-contained emergency battery back-up option to meet Code requirements without the need of a back-box.
Read More
Read Less
Light Source LED - Static
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Wallpack
Compliance Listing CA Title 20
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Fixture Wattage 48, 51, 52
Voltage Rating 120-277, 347
Color Black, Bronze, White
Mounting Type Surface
Series WPX2

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET WPX LED - Contractor Select Spec Sheet_0720.pdf WPX LED Specification Sheet 8/9/2023 View
    SPEC SHEET WPX LED - Specification Sheet_0720.pdf WPX LED Specification Sheet 3/8/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Instruction Sheet_WPX_040220.pdf WPX LED Installation Instructions 7/15/2020 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Comm Outdoor Lighting Portfolio Quick Reference Guide.pdf Outdoor Lighting Portfolio - Quick Reference Guide.pdf 4/15/2021 View
    Brochures LL Outdoor Lighting Specifications Solutions Guide LL Outdoor Lighting Specifications Solutions Guide 12/16/2022 View
    Brochures Outdoor Discretionary & Stock Solutions Guide_0723.pdf Discretionary & Stock Solutions Guide for Lithonia Lighting Commercial Outdoor 7/12/2023 View
    Brochures Outdoor HID Crossover Guide LL Outdoor HID Crossover Guide 5/4/2023 View
    Product Presentation Lithonia WPX Wall Packs - Customer Version - July 2020.pdf WPX LED Customer Presentation 9/23/2021 View
    Sell Sheet WPX LED Wall Pack - Sell Sheet_0620.pdf WPX LED Sell Sheet 7/8/2020 View
