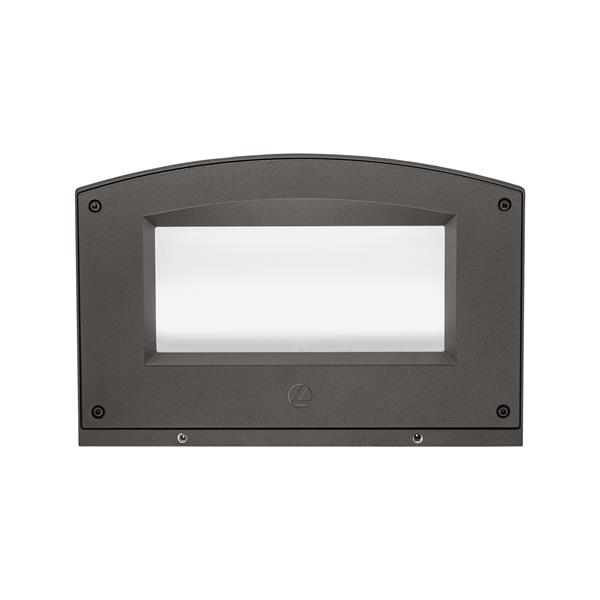

ARC2 LED Wall Mount

Size 2 – up to 6,500 lumens

By Lithonia Lighting

    CA Title 20
  • Overview
  • Specifications
ARC LED Wall Mount Luminaires combine visually comfortable illumination and architectural styling to create an affordable lighting upgrade.

The ARC family has two sizes with lumen packages of 1,500 to 6,500 lumens creating a solution that meets the needs of over-the-door lighting to mounting heights of up to 15-feet, replacing 70W to 250W metal halide lamps. The ARC LED luminaires improve the architecture and visual environment of any building and does so with a high energy savings of 80% and low initial costs, making it the choice for wall-mounted lighting upgrades.

ARC Size 2 is available with lumen packages going all the way up to 6,500 lumens, making it ideal for mounting heights of up to 15-feet. Emergency battery pack, photocell, CCT and finish options make the ARC configurable to meet the needs of any application.
Read More
Read Less
Shape Curved
Light Source LED - Static
Lumens 1500 LM, 2000 LM, 3000 LM, 4000 LM, 6500 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 80
Product Type Wallpack
Compliance Listing CA Title 20
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 11, 12, 13, 15, 16, 18, 20, 24, 25, 26, 28, 31, 33, 35, 53, 54, 55, 57
Voltage Rating 120-277, 347
Color Beige, Black, Bronze, Silver, White
Mounting Type Surface
Series ARC2

Read More Read Less
