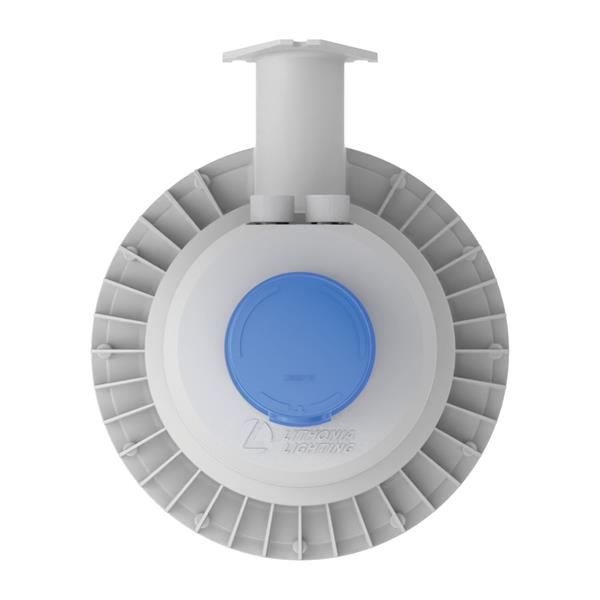

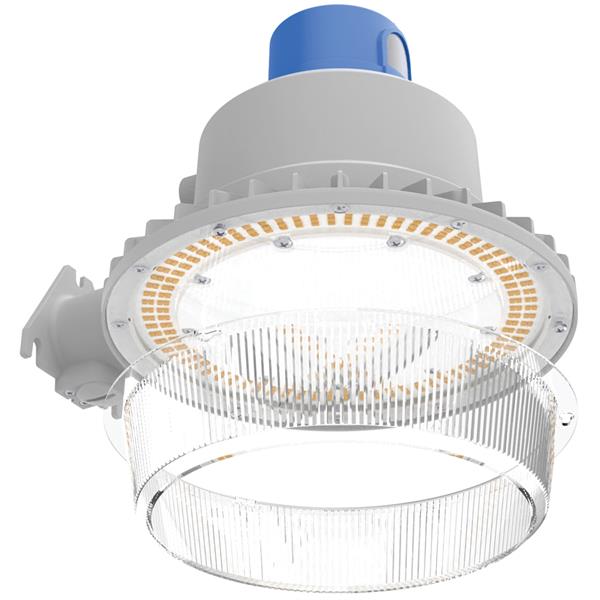

BarnGuard LED Outdoor Barn Light

LED Upgrade for Mercury Vapor and HPS Fixtures

By Lithonia Lighting

    DLC PremiumSwitchable CCTs
  • Overview
  • Specifications
Barn lights, security lights, yard lights… call them what you will, but they are everywhere! Despite their utilitarian style and simplistic performance, they pose a significant opportunity for an upgrade to LED lighting.

The Lithonia Lighting® BarnGuard LED security light has it all with its white light, high CRI, instant-on, and low energy consumption. Adjustable light output of up to 10,000 lumens and switchable color temperatures are standard features included.

BarnGuard LED is easy to install on an existing mast arm or directly to a wall or wooden pole. The included twist-lock photocell provides reliable dusk-to-dawn operation, and the crisp white light keeps sites safe and secure without ever having to change a lamp again.
Read More
Read Less
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 6000 LM, 10,000 LM
CCT / LED Color Variable
CRI 80
Product Type Area Light
Compliance Listing DLC Premium
Environmental Listing Wet Location
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Fixture Wattage 72
Voltage Rating 120-277
Color Silver
Mounting Type Pole Mount, Surface
Series BGR

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET BarnGuard Contractor Select Spec Sheet.pdf BarnGuard LED Security Light CS Specification Sheet 9/21/2022 View
    SPEC SHEET BarnGuard Spec Sheet.pdf BarnGuard LED Security Light Specification Sheet 7/13/2020 View
