Lithonia Lighting

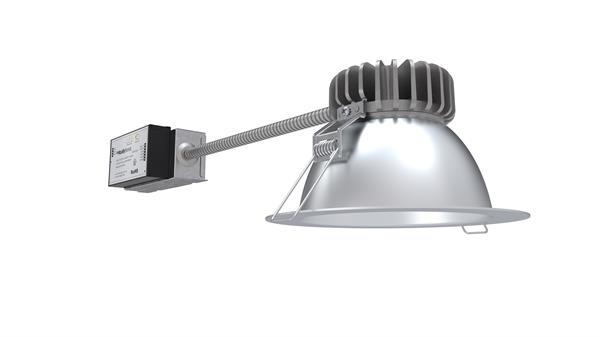

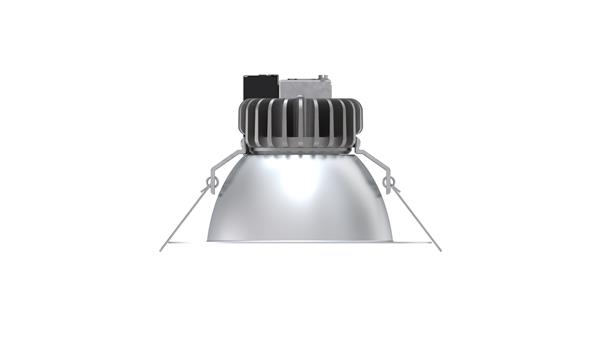

LBR6 Round Series

LBR 6” Round Retrofit | Remodel | New Construction Downlight
    Switchable LumensSwitchable CCTsEnergy Star®Low UGR
  • Overview
  • Specifications
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, Switchable
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K, Variable
CRI 80, 90
Product Type Retrofit Kit
Compliance Listing Chicago Plenum, ENERGY STAR®, Low UGR
Environmental Listing ASTM Airtight, Damp Location, IC, Non-IC, Wet Location
Regulatory Listing UL
Dimming Protocol 0-10V, DALI, Electronic Low Voltage, Triac
Fixture Wattage 10, 11, 11.2, 11.3, 11.6, 12.7, 12.8, 13.4, 13.5, 14.2, 14.3, 18, 18.8, 19, 20.2, 20.3, 21, 21.8, 24.1, 25, 25.5, 25.6, 27, 27.1, 28.6, 28.7, 29.5, 31, 31.7, 32, 33.1, 33.2, 34.7, 35.4, 37.5, 37.6, 38.8, 39, 39.1, 40, 40.5, 40.6, 41.5, 43, 44, 46, 46.5, 47.5, 49, 50, 51, 52, 53, 54, 55, 6.8, 8, 8.2, 8.3, 8.53, 9, 9.75, 9.8, 14.5, 14.8, 14.9, 15.5, 15.8, 16.4
Voltage Rating 120, 120-277, 277, 347
Trim Style Open, Single Wallwash
Color Black, Clear, White
Mounting Type Recessed
Series LBR6WW, LBR6

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet LBR6.pdf LBR6 Round Series 10/18/2024 View

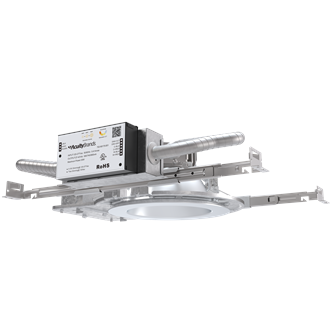

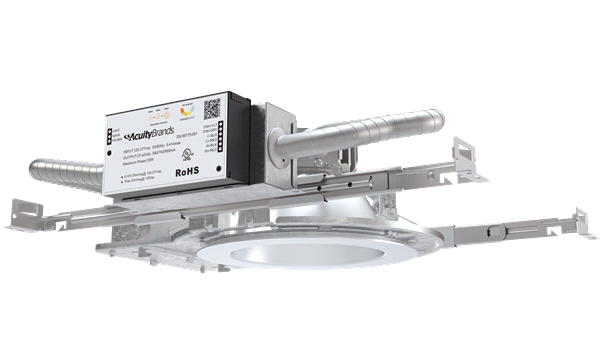

    Spec Sheet Lithonia-LBR6 NCH-Recessed-6in-Round-Downlight.pdf LBR6 Round New Construction 3/22/2023 View
    Design Select

    Need to Configurator a Design Select Product  or Create a Submittal Spec Sheet?

    Take Me There
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Dimming Compatibility LBR-LDN-LDN Switchable Dimming Compatibility Dimming Compatibility Cheat Sheet 8/20/2020 View
    Installation Instructions 912-00125_C.1_LBR Installation Instructions.pdf LBR4, LBR4SQ, LBR6, LBR6SQ, LBR8 and LBR10 LED Downlight 3/28/2024 View
    Installation Instructions 912-00158-001_B.1 Smash Plate.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square Mounting Plate 8/24/2020 View
    Installation Instructions 912-00165-001_WL Gasket.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square Replacement Wet Location "WL" Gasket Kit 8/24/2020 View
    Installation Instructions 912-00171-001_A.3_Goof Ring Installation Instr.pdf LBR4, LBR6 and LBR8 Round Goof Ring 8/24/2020 View
    Installation Instructions 912-00184-001_RevC_LBR 4IN-6IN PF Install.pdf LBR4, LBR4SQ, LBR6 and LBR6SQ Round and Square New Construction Mounting Frame 4/5/2021 View
    Installation Instructions 912-00217-LBR_CP_Installation_Instructions.pdf LBR4, LBR6 and LBR8 Round LED Downlight Supplemental for Chicago Plenum "CP" 8/8/2022 View
    Installation Instructions 912-00226-LBR _347_ Installation.pdf LBR4, LBR4SQ, LBR6, LBR6SQ and LBR8 Round and Square LED Downlight Supplemental for 347 Volt 8/8/2022 View
