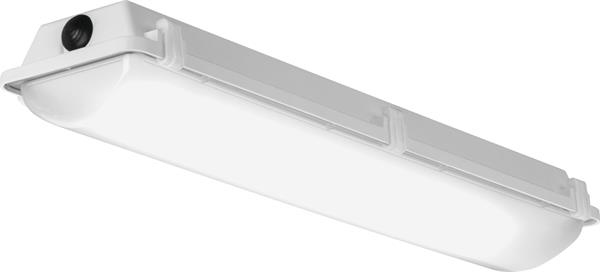

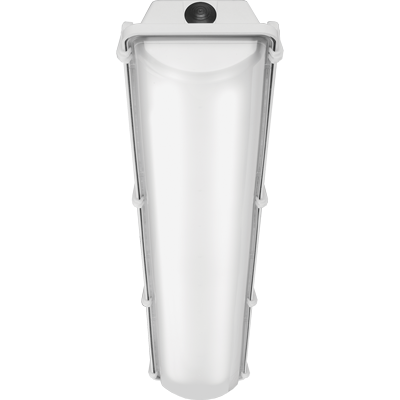

FEM L24 LPAFL_Illuminated_004.jpeg

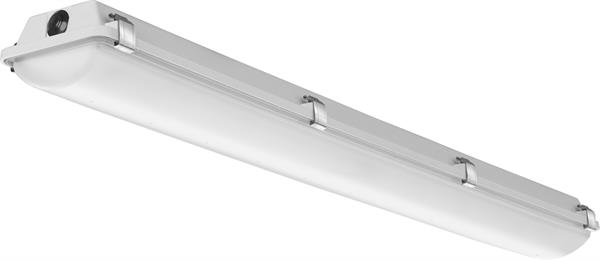

FEM L48 LPAFL STSL_Non-illuminated_001.jpeg
DUST-R-1208 FEM exploded.jpg

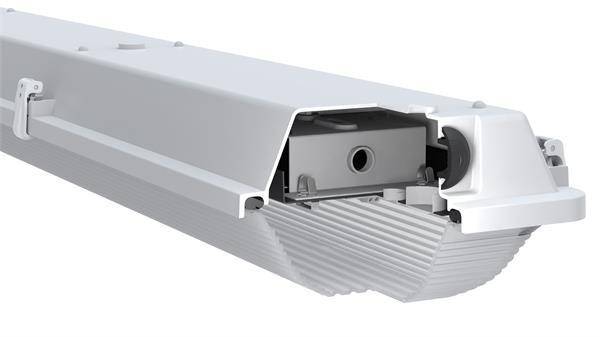

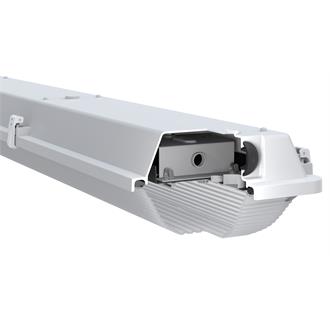

FEM cutaway and exploded view with Gasket.924.jpg

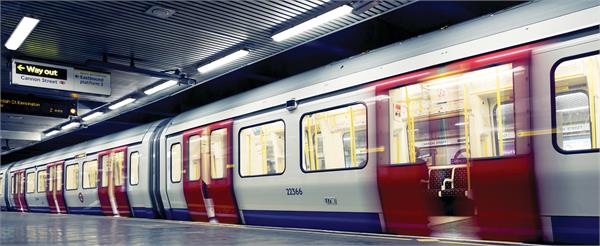

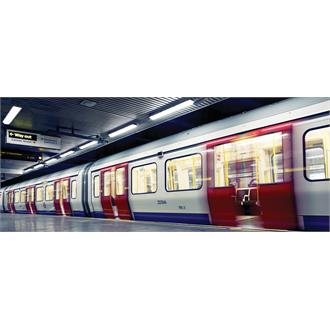

FEM L48_Train Station.jpeg

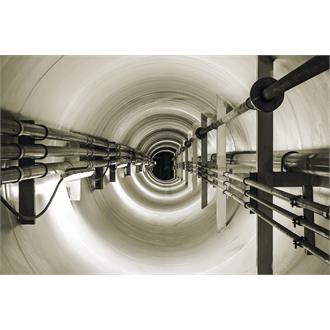

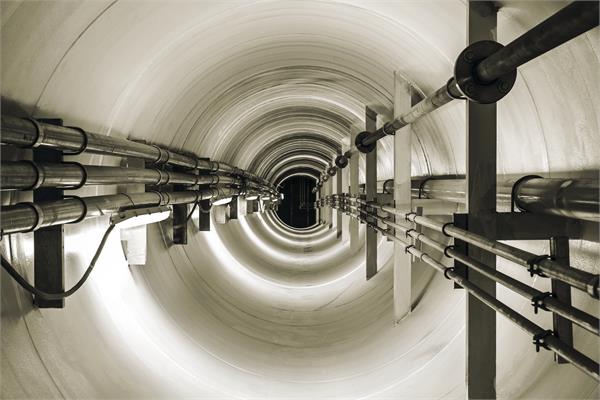

FEM L48_Tunnel.jpeg

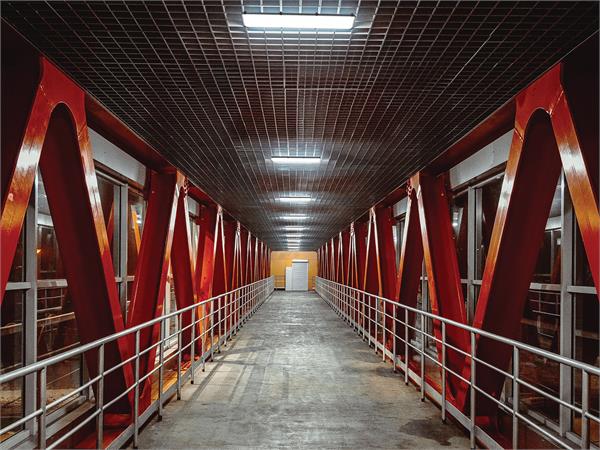

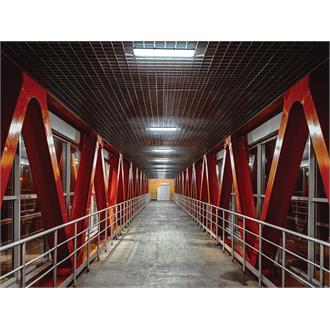

FEM L48_Walkway.jpeg

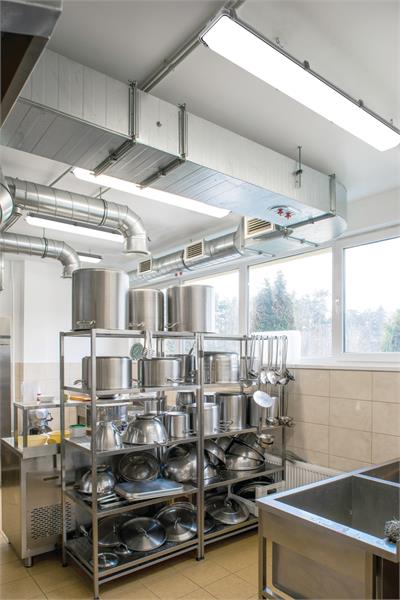

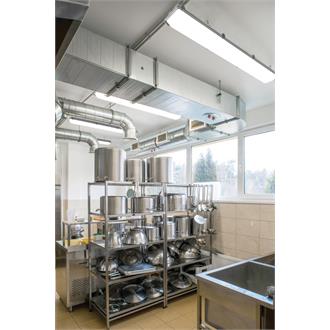

FEM L48_Kitchen.jpeg

FEM LED Linear

Enclosed-and-Gasketed General Purpose Luminaire

By Lithonia Lighting

    DLC PremiumCA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

Specially designed for wet, damp and cold storage locations, the vapor-tight FEM LED luminaire from Lithonia Lighting® withstands rugged environments and is available in 2-foot (L24) 4-foot (L48) and 8-foot (L96) lengths. With its sleek appearance, low profile and numerous options, it is ideal for parking garages, industrial facilities, retail stores, garden centers, food service, and airports.


Quality Construction. A one-piece, seamless fiberglass housing won’t corrode, rust, or crack, delivering years of reliable service and protection against the elements. A continuous, non-porous gasket keeps the fixture free from dust, dirt, and other unwanted contaminants.


The FEM LED is configurable to fit your budget and application:

  • Medium, wide, and parking garage distributions
  • Lumen packages ranging from 2,000 to 24,000 lumens with efficacy up to 170LPW
  • Color temperatures from 30K to 50K
  • 80CRI or 90CRI
  • Multiple variations of both polycarbonate and acrylic lenses available

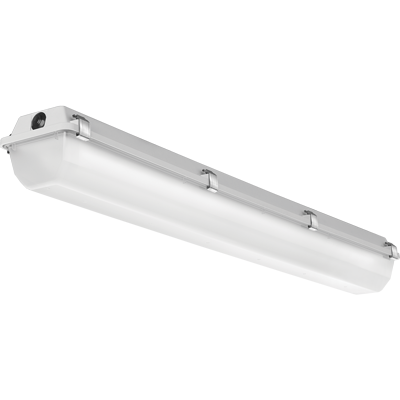

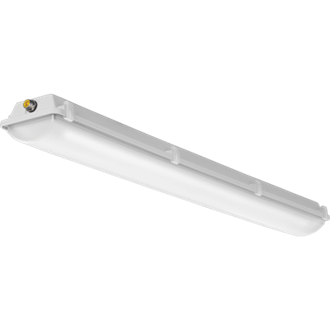

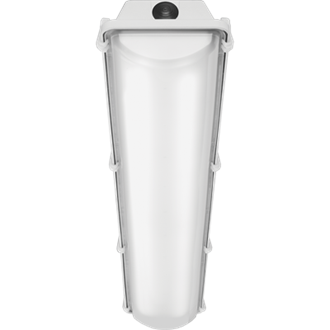

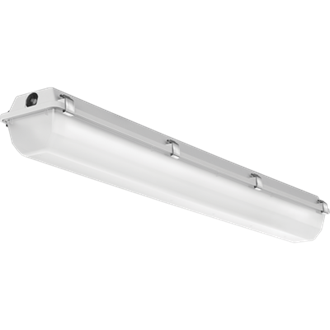

  • Latches: polycarbonate, standard; stainless steel, optional
  • Additional options: nLight® wired and wireless controls, occupancy and daylight sensors, emergency battery backup, generator transfer and more

Listings include: IP65, IP66 & IP67 rated; NEMA 4X rated lens and housing; ambient temperatures rated for -31°F (-35°C) to 95°F (35°C) when fixture is surface mounted or up to 122°F (50°C) when fixture is suspended at least 6" from ceiling.

Read More
Read Less
Size 2FT, 4FT, 8FT
Shape Rectangular
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 6000 LM, 8000 LM, 9000 LM, 10,000 LM, 12,000 LM, 15,000 LM, 18,000 LM, 20,000 LM, 24,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Linear
Compliance Listing BAA, CA Title 20, DLC Premium, DLC Standard
Environmental Listing Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 277, 347, 347-480, 480
Color White
Mounting Type Pendant
Series FEM
