Lithonia Lighting
Contractor Select (1-2 Days)
Lithonia Lighting

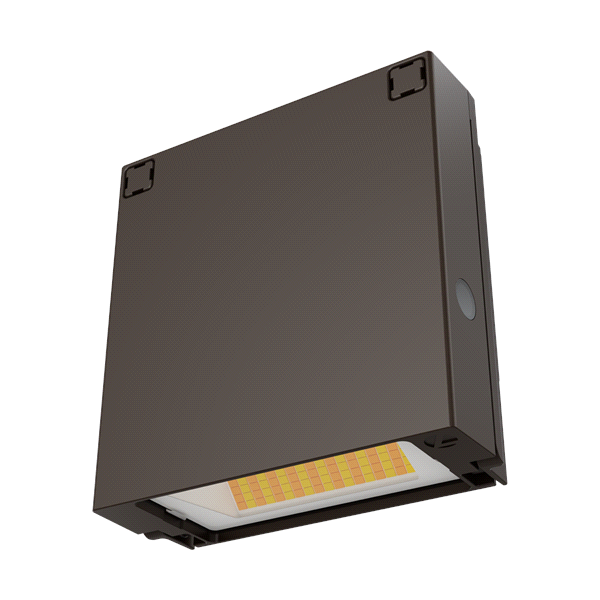

WPX0 LED Wall Mount

Size 0 - 850 to 1,650 lumens
    DLC PremiumSwitchable CCTs
  • Overview
  • Specifications
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Dynamic Feature Switchable White
Lumens 850 LM, 900 LM, 950 LM, 1000 LM, 1100 LM, 1200 LM, 1300 LM, 1400 LM, 1500 LM, 1600 LM, 1700 LM
CCT / LED Color Variable
CRI 70
Product Type Wallpack
Compliance Listing DLC Premium, DLC Standard
Environmental Listing IP66, Wet Location
Regulatory Listing C-UL-US
Dimming Protocol 0-10V
Voltage Rating 120-277
Color Bronze
Mounting Type Surface
Series WPX0
Days To Ship 2 or Less

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet WPX LED - Contractor Select Spec Sheet_0720.pdf WPX LED Specification Sheet Contractor Select 9/17/2024 View
    Spec Sheet WPX0 LED.pdf Size 0 - 850 to 1,650 lumens WPX0 10/31/2022 View
