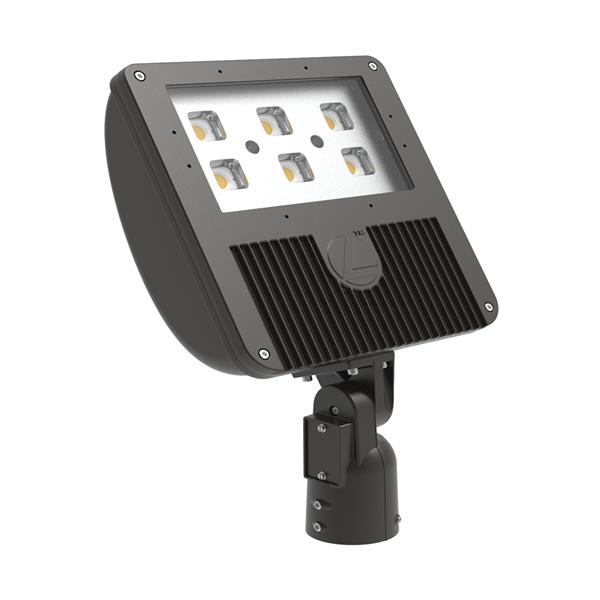

DSXF3_Main IS.jpg

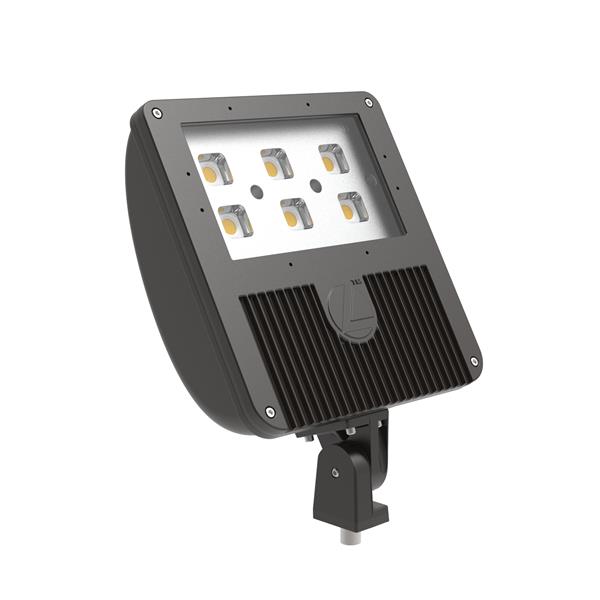

DSXF3_Main THK.jpg

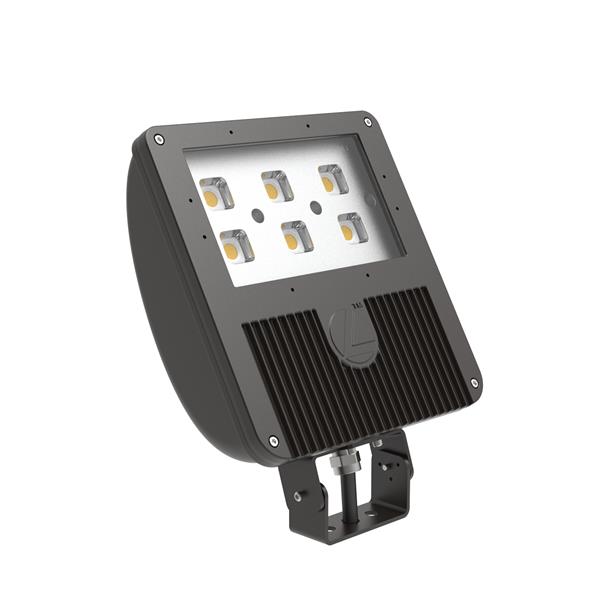

DSXF3_Main YK.jpg

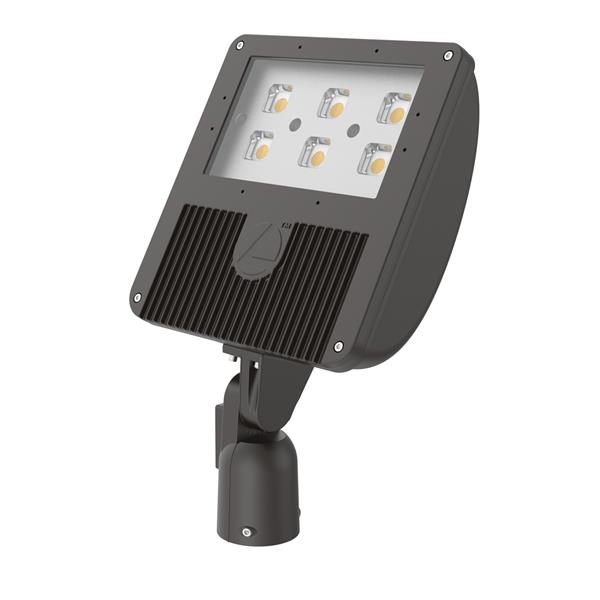

DSXF3_IS left.jpg

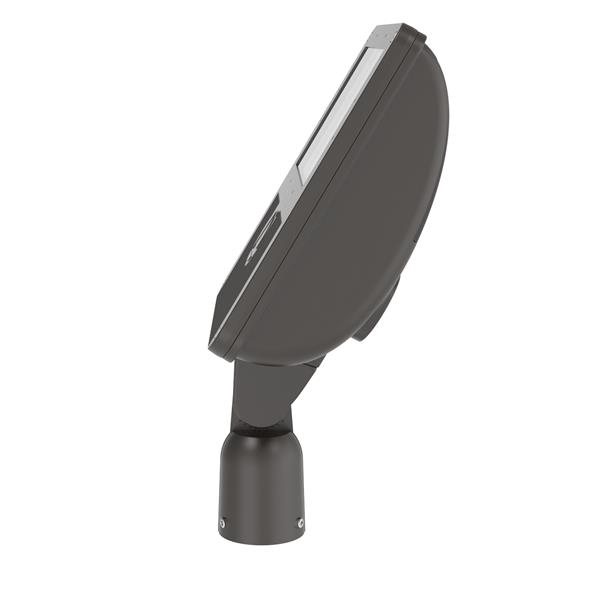

DSXF3_IS side.jpg

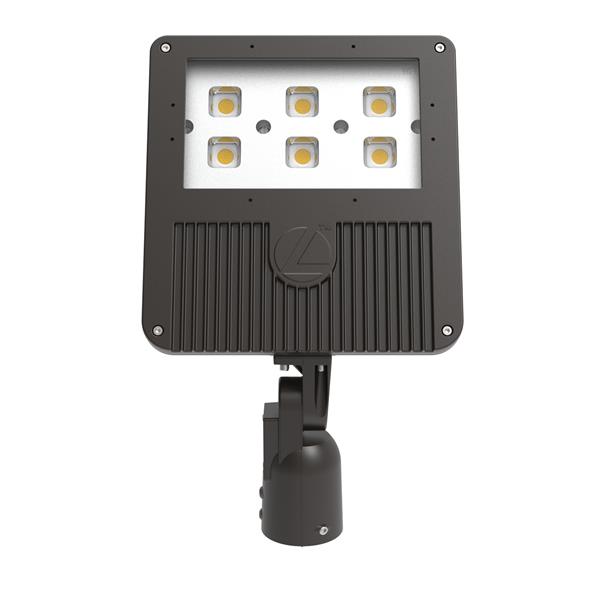

DSXF3_IS straight on.jpg

D-Series Flood Size 3

D-Series LED Floodlight Outdoor Size 3

By Lithonia Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications
The D-Series flood offers sleek aesthetics combined with maximum versatility for floodlighting design and renovation applications. The DSXF3 delivers 16,000 to 27,000 lumens allowing it to replace 400W HID floodlights, saving up to 76% on energy costs.

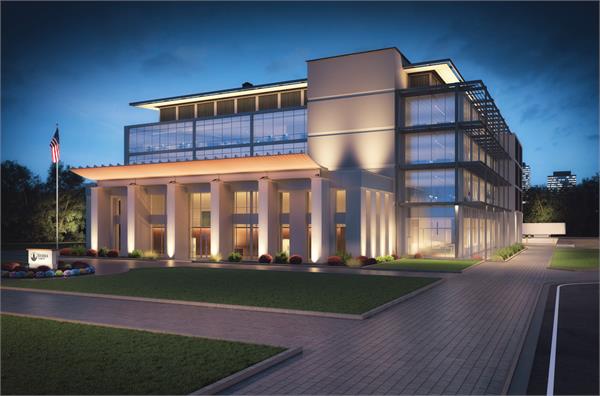

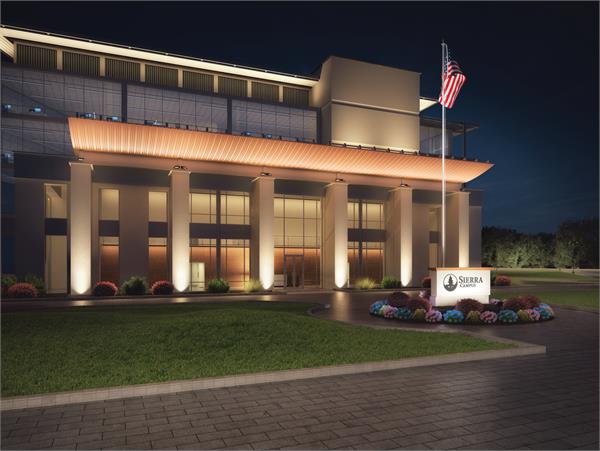

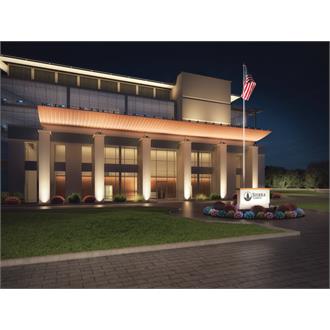

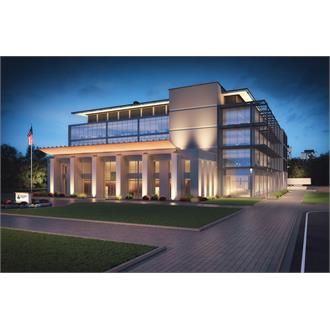

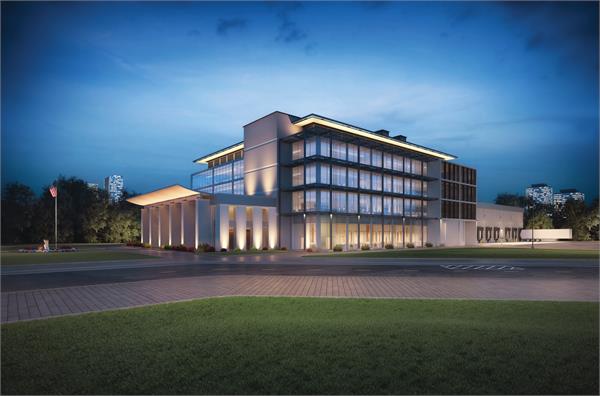

D-Series makes floodlighting design easy with its seven unique distributions and a broad range of aiming for precise target illumination. The DSXF3 provides maximum illumination power for higher mounting heights and larger areas requiring longer throw and maximum spread, for use on applications such as large monuments, façades, and large area lighting. DSXF3 provides superior illumination using precision optics that offer vast design capabilities all while delivering significant energy savings and long life.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 12,000 LM, 13,000 LM, 14,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM, 23,000 LM, 24,000 LM, 25,000 LM, 26,000 LM, 27,000 LM, 28,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Floodlight
Compliance Listing BAA
Environmental Listing IP66, Wet Location
Regulatory Listing CSA, NOM
Dimming Protocol 0-10V
Fixture Wattage 107, 111, 115, 120, 138, 145, 150, 165, 169, 170, 175, 180, 189, 190, 195, 205
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Beige, Black, Bronze, Gray, Green, Silver, White
Mounting Type Knuckle, Tenon Slipfitter, Yoke
Series DSXF3

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET DSXF3.pdf D-Series LED Floodlight, Size 3 4/14/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Accessories AFSTM OPTION Architectural stanchion mount 6/4/2020 View
    Accessories AFTS Tenon slipfitter (2-3/8”O.D. THK required) View
    Accessories FTS OPTION Tenon slipfitter. Converts yoke mount to tenon mount View
    Accessories oa-fl1 Accessories Floodlights View
    Accessories oa-fl2 Accessories Floodlights View
    Installation Instructions Instruction Sheet DSXF LED DSXF1, 2, 3 Installation instruction sheet, Rev D 12.15.22 12/19/2022 View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet DSXF3 Replacement and Repair Kits.pdf DSXF3 Replacement and Repair Kits 9/2/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Comm Outdoor Lighting Portfolio Quick Reference Guide.pdf Outdoor Lighting Portfolio - Quick Reference Guide.pdf 4/15/2021 View
    Brochures D-Series Flood Stock Solutions_0320.pdf D-Series Flood Stock Solutions - MAR 20 3/30/2020 View
    Brochures D-Series LED Floodlight Family Brochure_0521_web.pdf D-Series LED Floodlight Family Brochure 6/3/2021 View
    Brochures LL Outdoor Lighting Discretionary Stock Solutions LL Outdoor Lighting Discretionary Stock Solutions Brochure 12/19/2022 View
    Brochures LL Outdoor Lighting Specifications Solutions Guide LL Outdoor Lighting Specifications Solutions Guide 12/16/2022 View
    Brochures Outdoor Buy American Brochure Buy American Outdoor Portfolio 2/7/2022 View
    Brochures Outdoor HID Crossover Guide LL Outdoor HID Crossover Guide 5/4/2023 View
    Product Presentation DSXF Floodlights - Customer Presentation_JUN21.pdf DSXF Floodlights - Customer Presentation 6/3/2021 View
    Sell Sheet Size 1 Castle Museum Case Study Size 1 Castle Museum Case Study View
