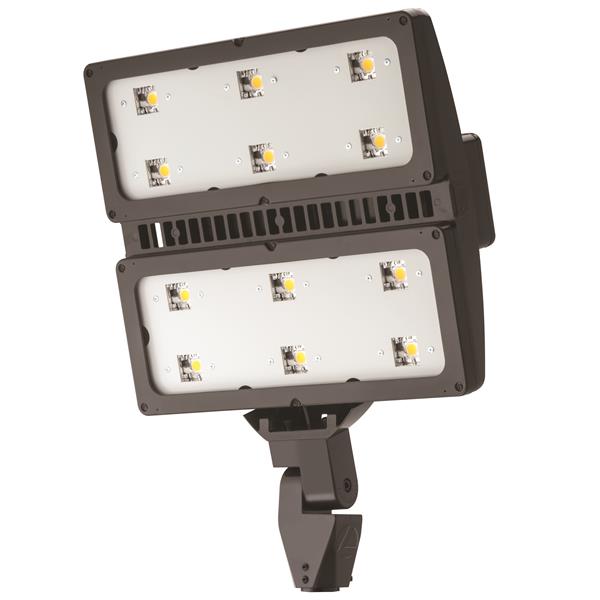

HLF2 LED IS DDBXD_Front.jpg

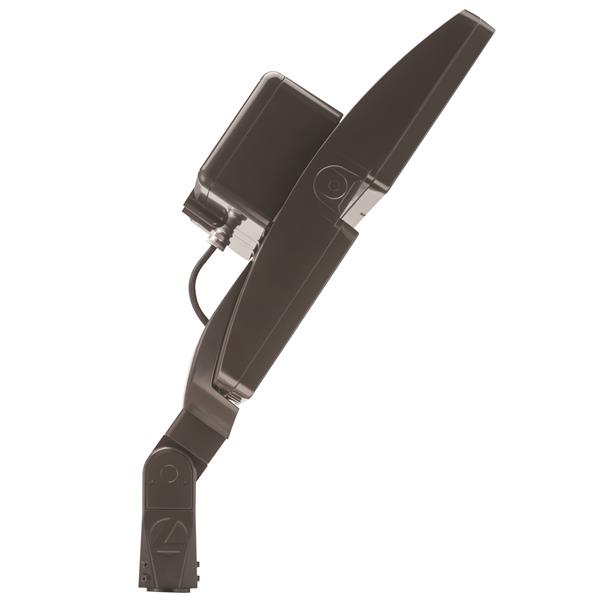

HLF2 LED IS DDBXD_Facing Down.jpg

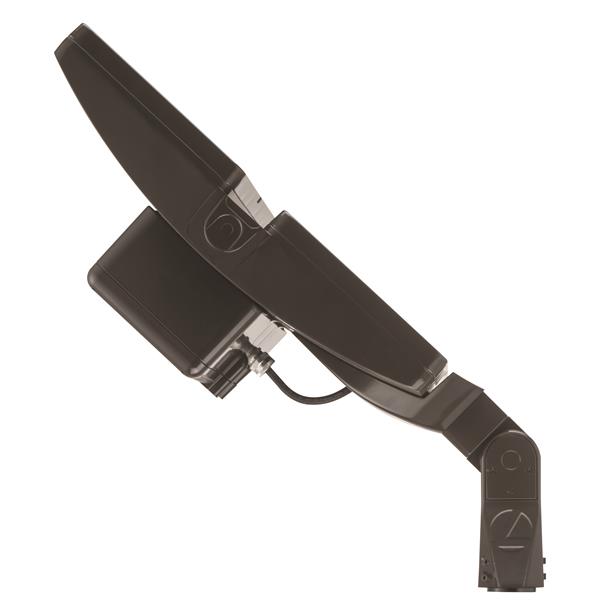

HLF2 LED IS DDBXD_Facing Up.jpg

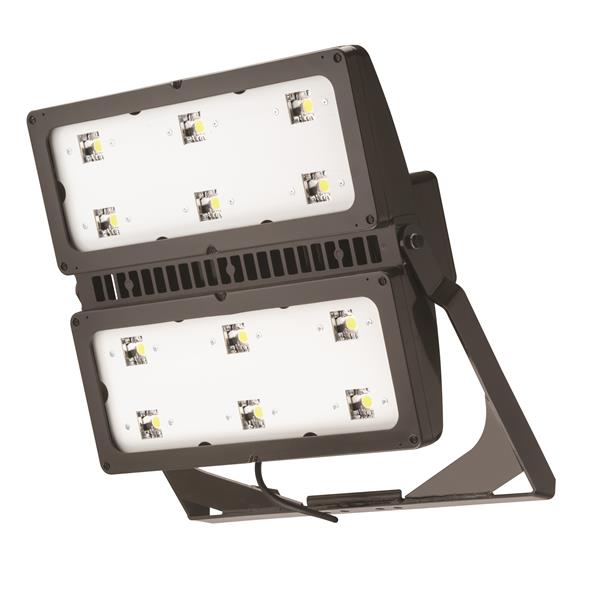

HLF2 LED YKC DDBXD_Front.jpg

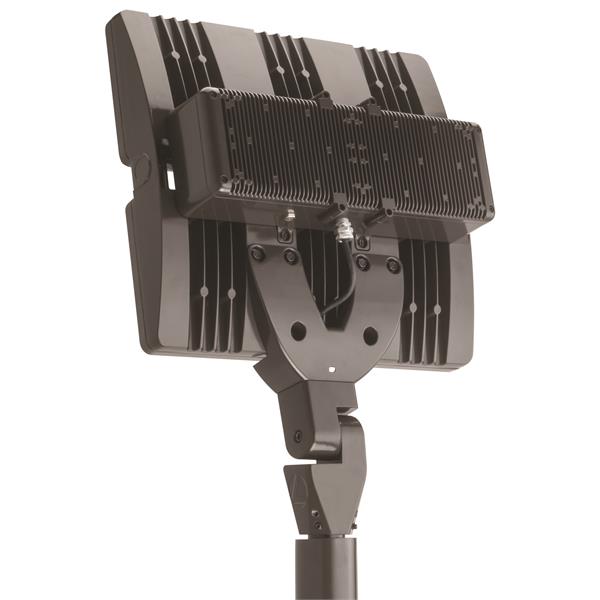

HLF2 LED IS DDBXD_Back.jpg

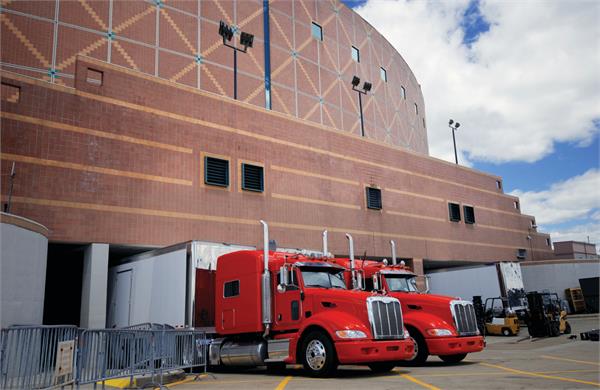

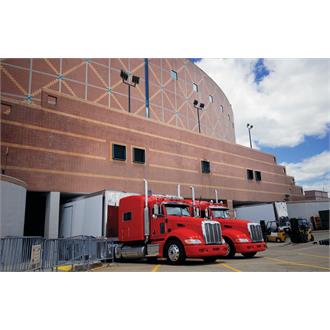

HLF2 LED IS DDBXD_Loading Area.jpeg

High Lumen Flood Size 2 - HLF2

LED Flood Luminaire Outdoor Size 2 – up to 101,000 lumens

by Lithonia Lighting

The HLF LED flood family offers maximum versatility for high output floodlighting design and renovation applications. The HLF2 delivers 50,000 to 101,000 lumens allowing it to easily replace 1000W in addition to (2) 1000W and (1) 1500W metal halide floodlights, saving up to 81% on energy costs.

HLF makes floodlighting design easy with its six unique distributions, including full range aiming from 0° to 185° and is ideal for the most demanding applications such as up-lighting monuments, buildings and other structures. HLF provides superior illumination using precision optics that offer vast design capabilities all while delivering significant energy savings and long life.
  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      Please be specific with your request and suggest adding a “need by date” if urgent request Note: Your request will be routed to either the BIM or IES team. Thank you.
  • Specifications

    Brand Lithonia Lighting
    Color Black, Bronze, Silver, White
    Control Photocontrol (Outdoor)
    Correlated Color Temperature 3000 K, 4000 K, 5000 K
    Environment Outdoor
    Finish Gloss
    Light Source LED - Static
    Regulatory Listing CSA
    Lumen Output 50,000 LM, 52,000 LM, 53,000 LM, 54,000 LM, 55,000 LM, 56,000 LM, 57,000 LM, 58,000 LM, 59,000 LM, 60,000 LM, 61,000 LM, 62,000 LM, 63,000 LM, 64,000 LM, 65,000 LM, 66,000 LM, 67,000 LM, 68,000 LM, 69,000 LM, 70,000 LM, 71,000 LM, 72,000 LM, 73,000 LM, 74,000 LM, 75,000 LM, 76,000 LM, 77,000 LM, 78,000 LM, 79,000 LM, 80,000 LM, 81,000 LM, 82,000 LM, 83,000 LM, 84,000 LM, 85,000 LM, 86,000 LM, 87,000 LM, 88,000 LM, 89,000 LM, 90,000 LM, 91,000 LM, 92,000 LM, 93,000 LM, 94,000 LM, 95,000 LM, 96,000 LM, 97,000 LM, 98,000 LM, 99,000 LM, 100,000 LM
    Mounting Type Pole Mount, Tenon Slipfitter, Yoke
    Product Type Floodlight
    Series HLF2
    Shape Rectangular
    Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
