ZL1N

ZL Series LED Strip Light with Narrow Lens

By Lithonia Lighting

    DLC PremiumBuy America(n) Option Available
  • Overview
  • Specifications

The ZL1N LED strip light delivers the look of a traditional low-profile fluorescent strip, but offers features and efficacy beyond conventional technology. Highly efficacious, the ZL1N maximizes savings yet does so without compromising light levels. The ZL1N is available in lengths of 2’, 4’ and 8’, allowing you to match existing fluorescent fixtures or keep the same aesthetic throughout your site.

  • Available in lumen packages from 1,500-14,000 lumens
  • Integrated emergency battery pack option
  • Factory-installed nLight® Power pack option for synchronous dimming and networking
  • Continuous-row mounting for aisle applications
  • Luma-Tilt angle bracket to aim ZL1N at 35°, 45°, 55° and 65°

Change your expectations of strip lighting with additional ZL Series product:
ZL1D with diffuse drop lens and uplight
ZL1F linear design with wide lens

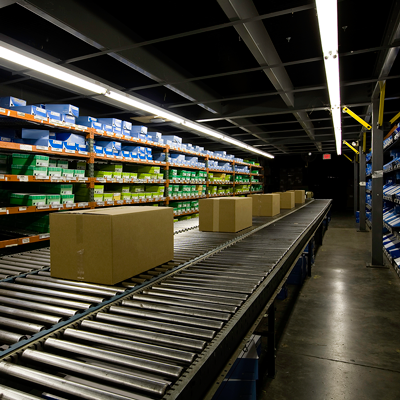

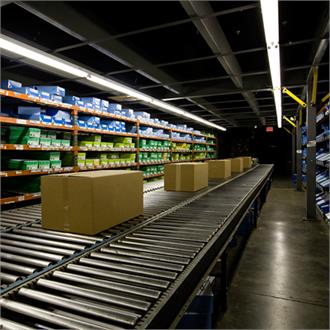

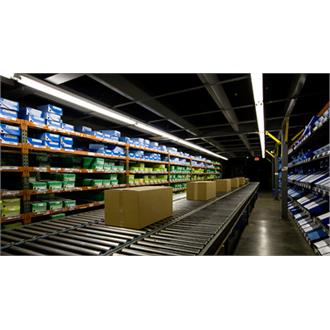

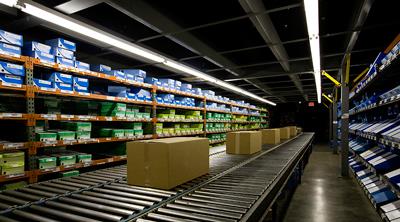

The ZL Series LED strip lights provide aesthetic and performance choices, integrated controls options and innovative mounting accessories ideal for commercial, retail, manufacturing, warehouse, cove and display applications. When paired with occupancy sensors, dimming and intuitive controls, you save energy and extend the life of the fixtures.

Read More
Read Less
Size 2FT, 4FT, 8FT
Shape Rectangular
Light Source LED - Static, Not Applicable
Dynamic Feature Not Applicable
Lumens 1500 LM, 2500 LM, 3000 LM, 3500 LM, 4400 LM, 5000 LM, 6000 LM, 7000 LM, 10,000 LM, 14,000 LM, Not Applicable
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Hanger
Compliance Listing BAA, DLC Premium, DLC Standard
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 104, 15, 19, 25, 31, 34, 52
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Black, Gray, Pewter, White
Mounting Type Not Applicable, Surface, Suspended
Series ZL1F, ZSPRG, ZACVH, ZLANGBKT, TZL1N, ZLR, ZL1N, RK2ZL1N, RK2TZL1N, RK1ZL1N, RK1TZL1N, Z

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Z Series LED striplight, 2', 4' or 8' Z Series LED striplight, 2', 4' or 8' 9/28/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_LL_TZL1N_30K_90CRI.pdf SpectralDataSheet_LL_TZL1N_30K_90CRI 8/5/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_ZL1N_35K_80CRI.pdf SpectralDataSheet_LL_ZL1N_35K_80CRI 8/5/2022 View

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ZACVH Instruction & Drawing_101811.pdf Adjustable 10' aircraft cable with Y hanger 4/28/2021 View
    Installation Instructions ZL1N Installation Instructions.pdf ZL1N Installation Instructions View
    Installation Instructions ZLANG Installation.pdf ZLANGBKT Luma-tilt™ angle bracket View
    Installation Instructions ZLR Instruction Sheet_U9917667.pdf ZL Reflector Install Instructions View
    Installation Instructions ZSPRG Instruction & Drawing.pdf Tong and T-grid hanger, for 15/16" T-grid 4/28/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet ZL Repair Kits 101619.pdf Replacement Lenses, Boards, Drivers, Etc. 1/26/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    FAQ ZL Series FAQs.pdf Frequently asked questions for ZL Series LED Strip Lights View
