ZL1D

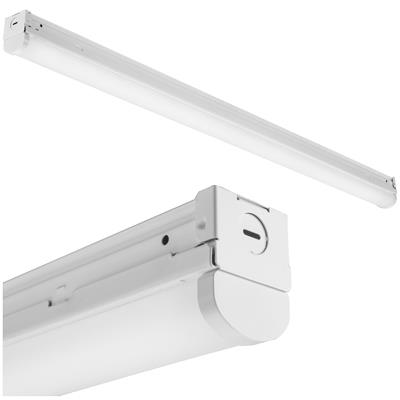

ZL Series LED Strip Light with Drop Lens and Uplight
    DLC PremiumCA Title 20Buy America(n) Option AvailableBuy America(n) Option Available
  • Overview
  • Specifications
Read More
Read Less
Size 2FT, 4FT, 8FT
Shape Rectangular
Light Source LED - Static
Dynamic Feature Not Applicable
Lumens 1500 LM, 2500 LM, 3000 LM, 3500 LM, 5000 LM, 6000 LM, 7000 LM, 10,000 LM, 14,000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Strip Light
Compliance Listing BAA and BABA, CA Title 20, DLC Premium, DLC Standard
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 121, 124, 127, 17, 22, 30, 33, 36, 41, 44, 59, 60, 62, 63, 81, 84, 87
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Black, Pewter, White
Mounting Type Surface, Suspended
Series TZL1D, ZL1D

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet ZL1D.pdf LED Striplight 10/31/2024 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_LL_TZL1D_35K_80CRI.pdf SpectralDataSheet_LL_TZL1D_35K_80CRI 8/5/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_ZL1D_35K_80CRI.pdf SpectralDataSheet_LL_ZL1D_35K_80CRI 8/5/2022 View

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions U219851.PDF ZL1D Installation Instruction Sheet 11/6/2017 View
    Installation Instructions ZACVH Instruction & Drawing_101811.pdf Adjustable 10' aircraft cable with Y hanger 4/28/2021 View
    Installation Instructions ZLANG Installation.pdf ZLANGBKT Luma-tilt™ angle bracket 11/13/2017 View
    Installation Instructions ZLR Instruction Sheet_U9917667.pdf ZL Reflector Install Instructions 7/24/2018 View
    Installation Instructions ZSPRG Instruction & Drawing.pdf Tong and T-grid hanger, for 15/16" T-grid 4/28/2021 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet ZL Repair Kits 8 6 2024 Replacement Lenses, Boards, Drivers, Etc. 8/6/2024 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    FAQ ZL Series FAQs.pdf Frequently asked questions for ZL Series LED Strip Lights 11/6/2017 View
