4118_large

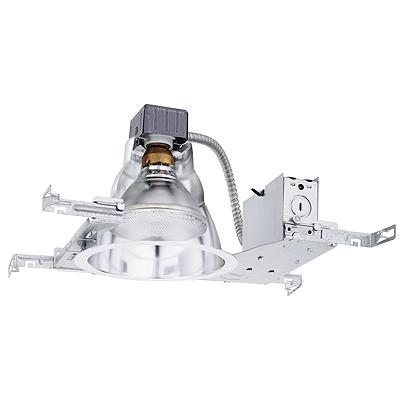

LP6

6" Incandescent

by Lithonia Lighting

Ideal for a wide variety of low- to medium-height ceiling applications including commercial, retail and hospitality spaces where open, baffled, wallwash and lensed reflectors are required.


Construction

Rugged, galvanized steel frame-in with high-friction retention clips to secure optical system. Socket housing attaches to reflector to ensure proper lamp positioning.

Factory-installed captive bar hangers that span up to 24" on center and feature built-in nailers and T-bar clips. Galvanized steel junction box with removable access door, four ROMEX® knockouts, two 3/4" and four 1/2" nominal conduit knockouts with pryout slots. Positioned to allow straight conduit runs.

Remodeling capability; consult factory.

Maximum ceiling thickness 1/2".

Electrical

Durable medium-base porcelain socket with nickel-plated copper alloy screw shell and contact. Integral thermal protector provides protection against improper use of insulation materials. Rated for #12 AWG conductor through-branch wiring. Minimum 90°C supply wire. Ground wire provided.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Size 6 IN
    Brand Lithonia Lighting
    Color White
    Environment Indoor
    Finish Gloss
    Light Source Not Applicable
    Regulatory Listing CSA, cUL
    Lumen Output Not Applicable
    Mounting Type Recessed
    Product Type Downlight
    Series LP6
    Shape Round
    Voltage Rating 277, Not Applicable
