RTLED

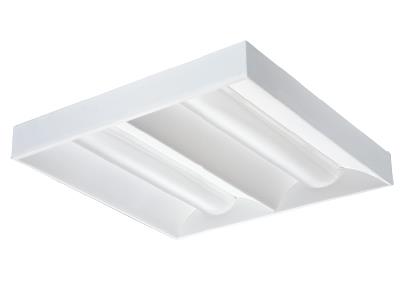

RTL Series Volumetric LED Luminaires
    DLC StandardBuy America(n) Option AvailableBuy America(n) Option AvailableLow UGR
  • Overview
  • Specifications
Read More
Read Less
Size 1x4, 2x2, 2x4
Shape Rectangular
Light Source LED - Static
Lumens 2000 LM, 2500 LM, 3000 LM, 3300 LM, 4000 LM, 4800 LM, 6000 LM, 7200 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Troffer
Compliance Listing BAA and BABA, Chicago Plenum, DLC Standard, Low UGR
Environmental Listing IC
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI, Digital, DMX
Fixture Wattage 29.2, 39.4, 47.3, 55, 70
Voltage Rating 120-277, 347
Color White
Mounting Type Recessed
Series 2RTL2, 2RTL4, RTL4

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet Volumetric Recessed Lighting, 1'x4' Volumetric Recessed Lighting, 1'x4' 5/15/2023 View
    Spec Sheet Volumetric Recessed Lighting, 2'x2' Volumetric Recessed Lighting, 2'x2' 4/19/2024 View
    Spec Sheet Volumetric Recessed Lighting, 2'x4' Volumetric Recessed Lighting, 2'x4' 5/15/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet?

    Take Me There
    View Product

    Need a Stocked Product?

    View Now

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    >> CLICK HERE to Download Spectral Data FAQs

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_LL_RTL4_40L_LP830.pdf RTL4_40L_80CRI_30K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_RTL4_40L_LP850.pdf RTL4_40L_80CRI_50K 9/6/2022 View

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions RTL Instruction sheet 912-00342-001 REV A.pdf Instruction Sheet for RTL and 2RTL 3/22/2022 View
    Installation Instructions SMKSH Installation Instuctions REV B.pdf SMKSH and SMKSHP Surface Mount Kit Installation Instructions 8/5/2019 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet RTL Series Replacement Part Kits 10.30.19.pdf RTL Series Driver, LED Board, and Diffuser Replacement Kits 5/12/2021 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs)

    Document Type Document Title Description Updated View
    Brochures rtled_brochure RTLED Brochure 6/11/2014 View
    FAQ rtled_2x2_faq RTLED 2x2 FAQs 6/11/2014 View
    FAQ rtled_2x4_faq RTLED 2x4 FAQs 6/11/2014 View
