1251_large

TX

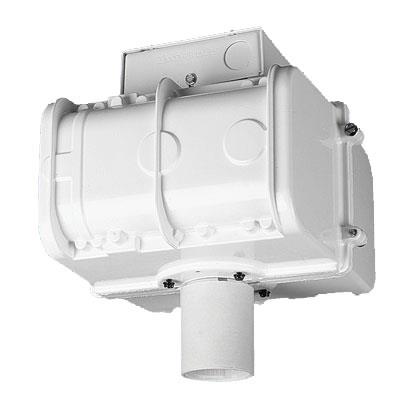

Die-Cast Aluminum Housings, Interchangeable Opticals

by Lithonia Lighting

Use TX ballast housing with these opticals:

A121, A125: Best for lower wattage; vertical and horizontal illumination.
Mounting heights: 8’-16’ .
A165: Provides vertical and horizontal illumination. Mounting heights: 14’-20’ .
PA22C: Provides high efficiencies; vertical illumination with uplight; glare control. Mounting heights: 14’-20’ .
PA25D: Provides high efficiencies; vertical and horizontal illumination; glare control.
Mounting heights: 14’-20’ .
PA22GLE, PA25ALE: Provides high efficiencies; vertical and horizontal illumination(higher mounting). Mounting heights: 14’-25’ .
A20: Best for lower wattage; premium glare control. Mounting heights: 10’-16’ .
A26: Suitable for vertical and horizontal illumination; premium glare control. Mounting heights: 14’-20’ .
A30: Provides high efficiencies; vertical and horizontal illumination; glare control; low brightness.
Mounting heights: 14’-20’ .
A23: Provides high efficiencies; glare control; vertical and horizontal illumination. Mounting heights: 14’-20’ .


Construction

Modular ballast housing for enclosed low bay opticals. Accepts various heavy-duty aluminum and prismatic acrylic low bay optical assemblies. Designed to provide uniform, glare-free energy-efficient lighting. Opticals are equipped with a heat-resistant, dust-inhibiting gasket at the point of attachment and a fully gasketed lens door assembly.

Large ballast housing utilized for optional high ambient temperature ratings and for 450W ballasts.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Brand Lithonia Lighting
    Color Clear, Silver, White
    Environment Indoor
    Finish Gloss, Not Applicable, Unfinished
    Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
    Regulatory Listing CSA, NOM, UL
    Lumen Output Not Applicable
    Mounting Type Not Applicable, Pendant, Suspended
    Product Type Reflector with Lens
    Series A20, A20LD, A23, A23LD, A26, A26LD, A30, A30LD, AR23, AR26, HKF, HKM, TX, TXD
    Voltage Rating 120, 208, 240, 277, 347, 480, Not Applicable
