Round straight aluminum general purpose pole for up to 20-foot mounting heights.
Shaft: One-piece extruded 6063-T6 aluminum alloy with T6 temper. Circumferential satin-brushed finish. Round straight tube is uniform in cross-section down length of shaft with no taper.
Anchor base: Cast from A356 aluminum alloy and heat treated to T6 temper. Base plate and shaft are circumferentially welded top and bottom. Base plate bolt circle is 7.5".
Anchor bolts: Fabricated from carbon steel bar with minimum-yield strength of 55,000 psi. Bolts have an "L" bend on lower end and are galvanized a minimum of 12 inches on the threaded end per ASTM A-153. Each anchor bolt is furnished with hex nut, washer and leveling shims.
Grounding: Provision located inside hand hole rim. Grounding hardware is not included (provided by others).
Hand hole: Reinforced 2"x 5" hand hole is located 18" above base. Cover and attachment hardware furnished.
Hardware: Stainless steel.
Top cap: Removable top cap provided with drill-mount poles.

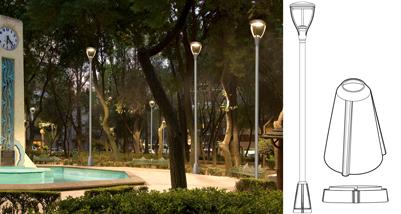

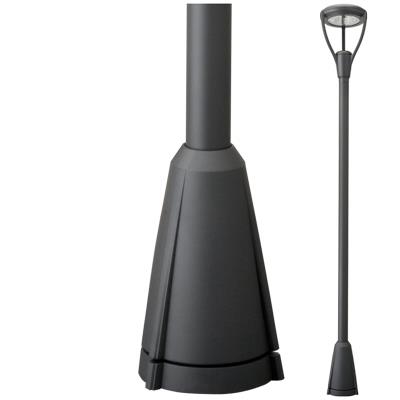

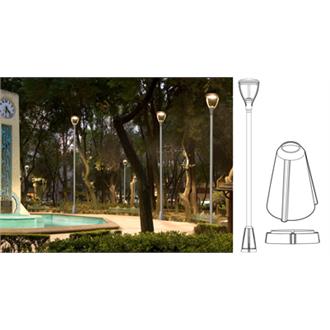

Decorative base. Made of die-cast aluminum the decorative base slides over the pole, matching a key slot in the pole baseplate allowing a reveal between the baseplate and the decorative base cover. The decorative base cover is 17.5" tall which is combined with the height of the matching baseplate for a total height of 20.25".
Finish: Must specify finish.
Available in all Lithonia Lighting Architectural Colors.
