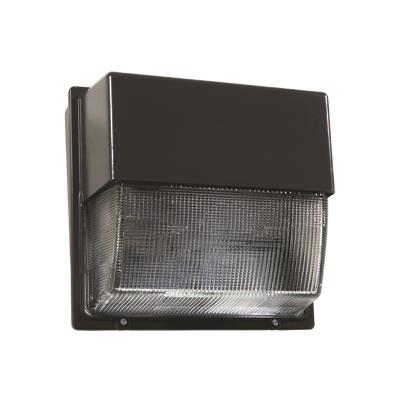

THW LED_main.jpg
TWH LED_Central Gwinnett High School_001.jpeg
TWH LED_Barksdale Elementary School_001.jpeg
TWH LED_Store_001.jpeg

TWH

Die-Cast Wall Pack CFL HID Outdoor, Glass

by Lithonia Lighting

  • DesignLights Consortium®

For outdoor storage areas, warehouse and factory perimeters, and loading docks. Not recommended for applications with frequent exposure to harsh chemicals or commercial cleaning fluids (e.g., car washes). Installations in such environments may lead to premature failure of the luminaire and void the warranty.


Construction

Housing: Rugged, die-cast aluminum housing. Corrosion-resistant captive external hardware includes slotted hex-head fasteners.

Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.

Optics

Reflector is specular anodized aluminum. Refractor is prismatic borosilicate glass. Lens is sealed and gasketed to inhibit entrance of outside contaminants.

Nighttime Friendly™ - Order with a full shield (FS) option, cast aluminum and glass lens construction, 400W max.

Electrical

Ballast: All ballasts are 100% factory tested. High reactance, high power factor for 150W and below. Constant wattage autotransformer 175W and above. MH:150W and below are standard with pulse-start ignitor technology. Super CWA Pulse Start ballasts, 88% efficient and EISA legislation compliant, are required for 151-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S. Compact fluorescent uses an electronic high-frequency ballast.

Socket: Horizontally oriented, mogul-base porcelain socket for 175W and above, medium base for 150W and below, with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W-600V, 4KV pulse rated. Fluorescent is four-pin positive latching thermoplastic. LPI is standard 35K for CFL.

Installation

Back housing is separated from front housing, eliminating ballast weight and promoting easy handling. Top 3/4" threaded wiring access. Back access through removable 3/4" knockout. Mount on any flat, non-combustible vertical surface.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Brand Lithonia Lighting
    Color Beige, Black, Blue, Bronze, Brown, Gray, Green, Orange, Red, Silver, White, Yellow
    CCT 2100 K, 3500 K, 4000 K
    Environment Outdoor
    Finish Gloss, Textured
    Light Source HID - Ceramic Metal Halide, HID - High Pressure Sodium, HID - Metal Halide
    Regulatory Listing UL
    Lumen Output 6000 LM, 14,000 LM, 22,500 LM, 27,500 LM, 28,000 LM, 45,000 LM
    Mounting Type Not Applicable
    Product Type Wallpack
    Series TWH
    Shape Rectangular
    Voltage Rating 120, 120-277, 208, 240, 277, 347, 480, MVOLT
