1380_large

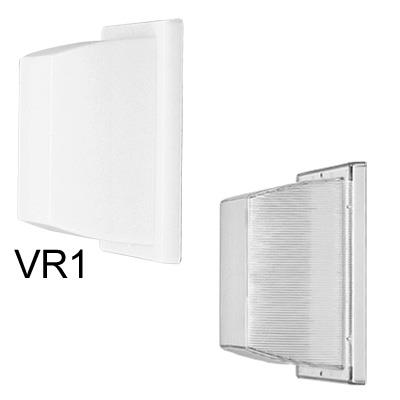

VR1-VR2

Steel Backplate Discontinued

by Lithonia Lighting

General illumination for rough service (vandal-resistant) applications. Ideal for applications that require adequate light capabilities for safety and security. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Backplate: Heavy-duty, 16-gauge cold-rolled steel. White polyester powder coat for high reflectance, durability and corrosion resistance. Backplate insulated with 1" thick fiberglass. Closed-cell neoprene gasket seals out moisture and contaminants.

Optics

Lens - VR1: White opal UV-stabilized polycarbonate, nominal thickness .125", softens light across entire surface. VR2: Clear prismatic UV-stabilized polycarbonate, nominal thickness .125". Smooth exterior for easy cleaning. Stainless steel tamper-resistant TORX® T20 screws or standard stainless steel slotted hex-head screws (two of each included).

Electrical

Ballast: Electromagnetic ballast is NPF with starting temperature of 0°F.

Socket: Fluorescent: Thermoplastic socket. Incandescent: Unglazed porcelain snap-in socket with aluminum screw shell. Spring-loaded steel clips hold socket tightly in place.

Lamps: 35K compact fluorescent lamp included unless L/LP is specified. Incandescent lamp not included.

Installation

Can be wall- or ceiling-mounted. Backplate suitable for outlet box mounting. For maximum vandal resistance, mount unit to structure through four knockouts provided.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Lithonia Lighting
    Color White
    Environment Indoor
    Finish Gloss
    Light Source Compact Fluorescent, Incandescent, Not Applicable
    Regulatory Listing CSA, UL
    Lumen Output Not Applicable
    Mounting Type Not Applicable, Surface
    Product Type Wallpack
    Series VR2, VR1
    Shape Rectangular
    Voltage Rating 120, Not Applicable
