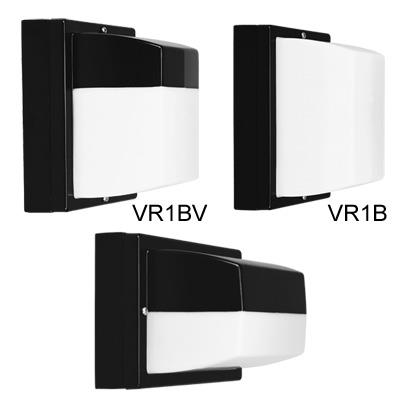

Decorative luminaire for general illumination of rough service (vandal-resistant) applications. Ideal for applications that require maximum light capabilities for safety and security. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.
Housing: One-piece cast aluminum, finished in black polyester powder coat. One 1/2" opening allows rear conduit entry or covers the outlet box. Two mounting holes for wall mounting.
Gaskets: Perimeter housing gasket is one-piece, die-cut, closed-cell neoprene to seal out contaminants. Pad mounting gasket of closed-cell neoprene helps keep out moisture, insects and dust from housing.
Lens: VR1B/BV/BH: White opal UV-stabilized, injection- molded polycarbonate lens, nominal thickness .125". VR2B/BV/BH: Clear prismatic UV-stabilized, injection- molded polycarbonate lens, nominal thickness .125".
Smooth exterior for easy maintenance and accented with high-strength black Polane® polyurethane coating for hardness, adhesion and abrasion resistance. Lens is secured by two #8-32 stainless steel screws, either tamper-resistant TORX® T-20 or slotted hex-head (two of each included).
Ballast: Electronic HPF multi-volt, starting temperature 0°F. Exception: 7TT is electromagnetic, NPF.
Lamps: 35K compact fluorescent lamp(s) included unless L/LP is specified.
Unit may be wall- or ceiling-mounted.
Suggested Replacement Products
Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)
How to Buy
Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
as well as at more than 100 showroom or international locations and several online retailers.
Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
call us at 1.800.705.SERV (7378).
|Light Source||Compact Fluorescent, Incandescent|
|Regulatory Listing||CSA, Not Applicable|
|Series||VR1B, VR1BH, VR1BV, VR2B, VR2BH, VR2BV|
|Voltage Rating||120, 120-277, 277, 347|
