VGRC

LED, CFL or Incandescent; Cast Housing

by Lithonia Lighting

Architectural luminaires for general illumination in rough service (vandal-resistant) wall or ceiling-mount applications. Ideal for interior or exterior applications where safety and security are a concern. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Bezel: One-piece, die-cast aluminum, low copper alloy (<1% copper), .125" thick. Secured to housing with stainless steel Torx® T10 set screws (two included).

Finish: Standard finish is textured polyester powder coat.

Housing: One-piece, die-cast aluminum, low copper alloy (<1% copper), post-painted in textured polyester powder coat. For use directly over outlet box or conduit entry (1/2" and 3/4" threaded opening).

Gasket: Polycarbonate: Perimeter lens gasket is one-piece silicone "O" ring. Glass: Perimeter lens gasket is closed-cell silicone. Pad mounting gasket (closed-cell neoprene) seals housing to mounting surface.

Optics

Lens: Translucent white, injection-molded, UV-stabilized polycarbonate, .125" thick. Smooth exterior for easy cleaning. Interior pattern diffuses light for uniform surface illumination. Optional borosilicate glass lens available (.250" thick). Optional starburst pattern polycarbonate and borosilicate glass lens available (.250" thick).

Reflectors: CFL: High-gloss white powder coat finish for maximum light output. HID: Semi-specular aluminum. Lamps positioned for uniform brightness and illumination.

Electrical

Ballast – CFL: Class P, electronic, HPF multi-volt. <10% THD with starting temperature of 0°F. HID: High reactance, HPF, starting temperature -20°F (MH) or -40°F (HPS).

Socket – CFL: High-temperature thermoplastic with lamp retention clip. HID: Medium-base 4KV rated porcelain.

Lamps - LED: 3500K standard (4100K also available). CFL: 35K 4-pin lamp(s) standard. HID: Reduced UV lamp is standard. Lamps included unless L/LP is specificied. Incandescent: Lamps not included.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Brand Lithonia Lighting
    Color Beige, Black, Bronze, Silver, White
    Control Occupancy Sensor, Photocontrol (Outdoor)
    Environment Indoor
    Finish Gloss, Textured
    Light Source LED - Static, Not Applicable
    Regulatory Listing CSA, Not Applicable
    Lumen Output 1200 LM
    Mounting Type Surface
    Product Type Wallpack

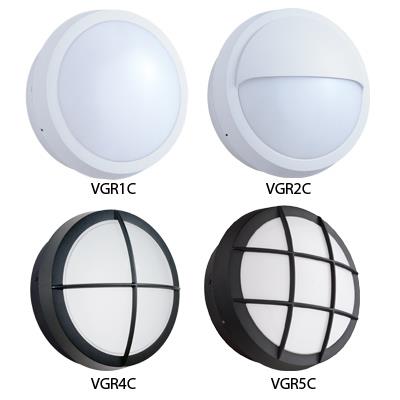

    Series VGR1C, VGR2C, VGR4C, VGR5C
    Voltage Rating 120, 277, MVOLT
