VDC-VDS

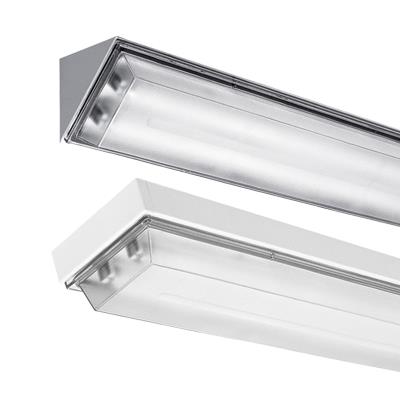

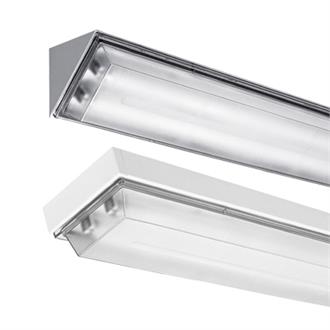

Heavy-Duty Steel Housing, Surface- and Corner-Mount

by Lithonia Lighting

General illumination for rough service (vandal-resistant) applications. Designed for indoor and outdoor applications like corridors, walkways, pedestrian tunnels, canopies and drive-through areas. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Housing: Heavy-duty, 16-gauge cold-rolled steel, one-piece housing for corner-mounted (VDC) or surface-mounted (VDS) applications. Housing and reinforcing members welded together for strength. Optional stainless steel or aluminum housings available.

Finish: All metal parts are post-painted in white polyester powder coat for smooth, finished edges and corrosion resistance.

Optics

Lens: Clear, internally frosted, UV-stabilized, injection-molded polycarbonate lens (.125" thick) standard. Smooth exterior for easy maintenance. Lens gasketed against moisture and contaminants and secured to housing with six stainless steel TORX® T-20 tamper-resistant screws (included).

Electrical

Ballast cover: Ballast and lampholders are secured to channel cover to provide easy installation and maintenance. Channel-cover safety chains included.

Ballast: Class P, HPF ballast is UL Listed. Ballast for 32W is standard GEB10IS with a 0°F starting temperature.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Brand Lithonia Lighting
    Color White
    Environment Demanding
    Finish Gloss
    Light Source Compact Fluorescent, Fluorescent
    Regulatory Listing UL Damp Location
    Mounting Type Surface
    Product Type Linear
    Series VDC, VDS
    Voltage Rating 120, 277, 347, MVOLT
