FFB164

FFB

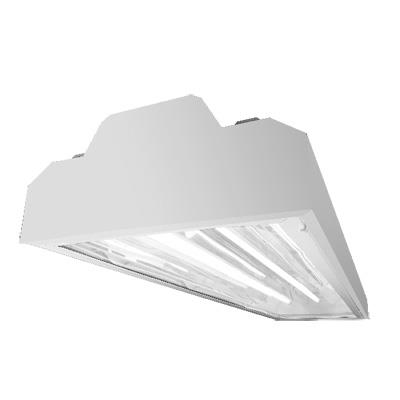

High Lumen Full-body High Bay

by Lithonia Lighting

The perfect replacement for HID high bay luminaires in cold storage applications. Typically located in warehouse, industrial, commercial and manufacturing areas. Typical mounting heights of 15' to 25'. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables on pages 794-795 for suitable uses.


Construction

Channel, ends and socket brackets are manufactured from 22-gauge cold-rolled steel. Riveted and screwed assembly. Tool-less ballast and wiring access. Optional heavy-gauge steel or all-aluminum construction are also available.

Lamp shielding options are provided with a 22-gauge premium polyester powder coat finish door frame with two painted hinges and two painted opposing rotary cam latches. Lenses are held in place with lens clips. Fixture is provided with double gasketing around door frame and lens.

Finished in premium polyester powder coat finish, utilizing a seven-stage pretreatment process of iron phosphate, a non-chromium sealer and a de-ionized water rinse to provide superior adhesion and corrosion resistance.

Optics

Reflectors are precision-formed, high-performance, 95% total reflectance, segmented optics utilizing premium specular aluminum warranted for 25 years.

Electrical

Ballasts are electronic, energy-saving, thermally protected, Class P, HPF, non-PCB, Sound Rating A, UL/CSA certified where applicable and comply with Federal Ballast Law (Public Law 100-357, 1988). UL listed wire, rated for required temperatures, used throughout.

Lamps are secured with rotary locking lampholders for ease of re-lamping and to minimize disconnection due to vibration or incidental contact. Factory-installed lamps are available in various CRI ratings, temperature colors and rated life.

Installation

May be offset mounted to a hard ceiling or may be suspended with aircraft cable, chain hangers or by monopoint hanger.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Size 4FT
    Brand Lithonia Lighting
    Color White
    CCT 3500 K, 4100 K, 5000 K
    Environment Indoor
    Finish Gloss
    Light Source Fluorescent, Not Applicable
    Regulatory Listing CSA, UL
    Lumen Output Not Applicable
    Mounting Type Not Applicable, Pendant, Suspended
    Product Type High Bay
    Series FFB28, FFB14, FFB164, FFB24, FFB14, FFB168, FFB18
    Shape Rectangular
    Voltage Rating 120-277, 347-480, Not Applicable
