1382_large

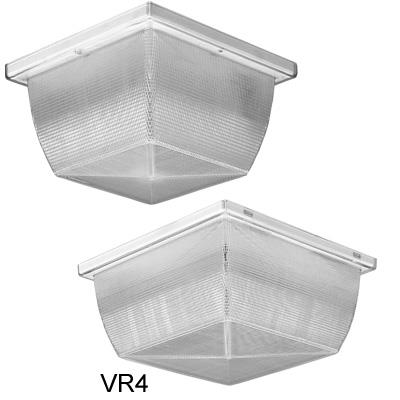

VR3-VR4

Steel Backplate Discontinued

by Lithonia Lighting

General illumination for rough service (vandal-resistant) applications. Ideal for interior or exterior applications where safety and security are a concern. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Backplate: Heavy-duty, 16-gauge cold-rolled steel. White polyester powder coat for high reflectance, durability and corrosion resistance. Closed-cell neoprene gasket seals out moisture and contaminants.

Optics

Lens: Clear prismatic, UV-stabilized polycarbonate, nominal thickness .125". Prism optics provide uniformity with maximum spacing-to-mounting height ratios. TORX® T-20 and standard stainless steel slotted hex-head screw (one each included).

Electrical

Ballast: VR3: Electromagnetic, NPF, with starting temperature of 0°F for 7W and 25°F for 9W.

VR4: Class P, electronic, HPF multi-volt, THD <10%, starting temperature 0°F. Exceptions are 9TT, 13TT. Electromagnetic, NPF, 120V only.

Socket: Compact fluorescent: Thermoplastic socket. Incandescent: Unglazed porcelain snap-in socket with aluminum screw shell. Spring-loaded steel clips hold socket tightly in place. VR3 provided with one socket and VR4 provided with two sockets. SM1 single-socket option available.

Lamps: 35K compact fluorescent lamp(s) included unless L/LP is specified. Incandescent lamp(s) not included.

Installation

Keyhole slots simplify wall or ceiling installation. For maximum vandal resistance, use four-hole mounting pattern.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Lithonia Lighting
    Color White
    Environment Indoor
    Finish Gloss
    Light Source Compact Fluorescent, Incandescent, Not Applicable
    Regulatory Listing CSA, UL
    Lumen Output Not Applicable
    Mounting Type Not Applicable, Surface
    Product Type Canopy
    Series VR3, VR4
    Shape Square
    Voltage Rating 120
