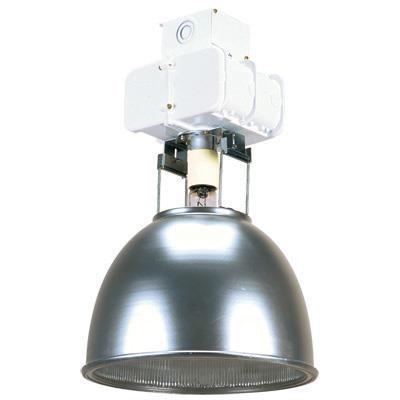

1201_large

TPG-A

Premium Open Shrouded Glass Optical Discontinued

by Lithonia Lighting

For high mounting heights that require high efficiencies, horizontal and vertical illumination, and premium contrast control. Optimum performance for high ambient temperatures and dirty environments. Ideal for heavy manufacturing areas, warehouses and retail aisles.


Construction

Housing: Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components horizontally opposed and heat-sinked to ballast housing for cooler operation.

Optics

Glass reflector with aluminum shroud to protect glass prisms from oily dirt accumulation, emphasizing downward efficiency.

Electrical

Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-450W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S. 1000W is constant wattage autotransformer.

Socket: Vertically oriented mogul base protected exclusionary "PINK" socket with copper alloy, nickel-plated screw shell and center contact. For use with O-rated, protected metal halide lamps only.

Installation

Cast-aluminum pendant splice box threaded for 3/4" conduit (standard). Other mounting options available.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Specifications

    Brand Lithonia Lighting
    Color White
    Environment Indoor
    Finish Gloss
    Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
    Regulatory Listing CSA, NOM, UL
    Mounting Type Not Applicable
    Product Type High Bay
    Series TPG
    Voltage Rating 120, 208, 240, 277, 480, Not Applicable
