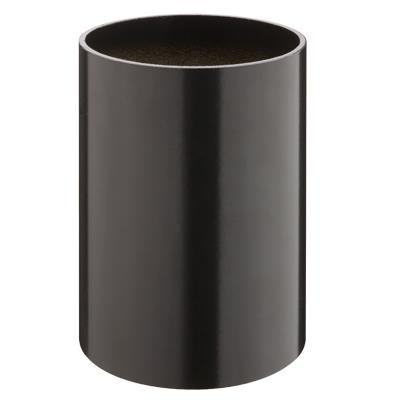

1327_large

RSA

Round Straight Aluminum

by Lithonia Lighting

Round straight aluminum general purpose pole for up to 30-foot mounting heights.


Construction

Shaft: One-piece extruded 6063-T6 aluminum alloy with T6 temper. Circumferential satin-brushed finish. Round straight tube is uniform in cross-section down length of shaft with no taper.

Anchor base: Cast from A356 aluminum alloy and heat treated to T6 temper. Base plate and shaft are circumferentially welded top and bottom. The anchor base is provided with slotted holes.

Anchor bolts: Fabricated from carbon steel bar with minimum-yield strength of 55,000 psi. Bolts have an "L" bend on lower end and are galvanized a minimum of 12 inches on the threaded end per ASTM A-153. Each anchor bolt is furnished with two hex nuts and two flat washers.

Grounding: Provision located inside hand hole rim. Grounding hardware is not included (provided by others).

Hand hole: Reinforced 2" x 4" hand hole is located 18" above base. (4.5" and 5" poles have either 2" x 4" or 3" x 5" hand hole; 6" poles have a 3" x 5" hand hole). Cover and attachment hardware furnished.

Hardware: Stainless steel.

Top cap: Removable top cap provided with drill-mount poles.

Bolt covers: A356 bolt covers included with anchor base unless otherwise specified.

Finish: Must specify finish.

Other

Check out POLESCENTRAL for additional resources and solutions.

Refer to this link for Light Pole Replacement Parts

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Brand Lithonia Lighting
    Color Almond, Beige, Black, Blue, Bronze, Brown, Gray, Green, Red, Silver, White, Yellow
    Environment Outdoor
    Finish Brushed, Gloss, Not Applicable, Textured
    Regulatory Listing UL
    Mounting Type Anchor Based
    Product Type Pole
    Series 3RSA, RSA
