L3

4" Incandescent New Construction Housing

By Lithonia Lighting

  • Overview
  • Specifications

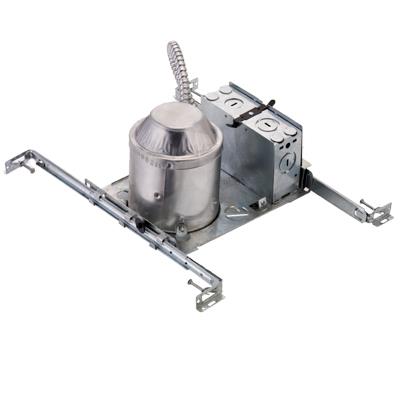

Recessed incandescent housings for 2x8 and 2x6 new construction applications. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

L3: Air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX® clamps and ground wire. Rated for 90°C. Factory-installed captive bar hangers that span up to 24 o.c. and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Socket clips to trim to ensure proper and consistent lamp position. Suitable for ceilings up to 1-1/2" thick.

Read More
Read Less
Size 4 IN
Shape Round
Light Source Incandescent
Product Type Downlight
Regulatory Listing cUL, UL
Fixture Wattage Not Applicable
Voltage Rating 120
Color White
Mounting Type Recessed
Series L3
