3986_large

L7XPR

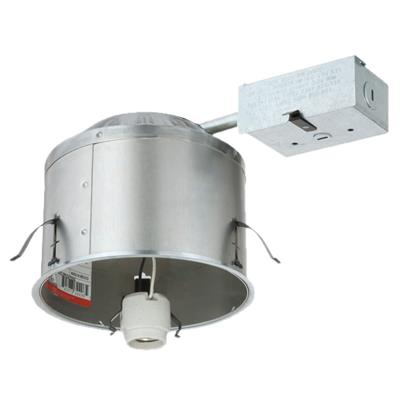

6" Shallow Incandescent Remodel Housing

by Lithonia Lighting

Recessed incandescent housings for 2x6 remodel construction. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

L7XPR: Air-tight aluminum housing with heavy-gauge galvanized steel raceway arm. Remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Galvanized steel junction box with three built-in ROMEX® clamps and ground wire. Not suitable for pulling wires. Rated for 90°C. Socket clips to trim to ensure proper and consistent lamp position.

Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Suitable for ceilings up to 1-1/2" thick.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Size 6 IN
    Brand Lithonia Lighting
    CCT Not Applicable
    Environment Indoor
    Light Source Incandescent, LED - Static
    Regulatory Listing CSA Damp Location, cUL, IC, Non-IC, UL Damp Location
    Mounting Type Recessed
    Product Type Housing
    Series L7XPR
    Shape Round
    Voltage Rating 120
