LC6 MRI

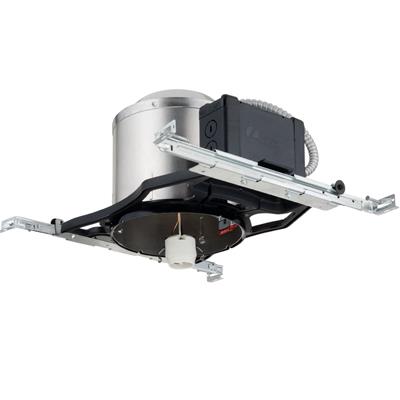

6" Incandescent MRI New Construction Housing

by Lithonia Lighting

Recessed housing rated Non-IC for new construction or remodel applications. Approved for all ceiling types except air-handling plenums. Suitable for installation in rooms containing magnetic resonance imaging equipment. No significant ferrous material contained in fixture.


Construction

Aluminum housing. Engineering-grade thermoplastic frame and junction box with four built-in ROMEX® clamps; five 7/8" knockouts with slots for pryout. Rated for 90°C. Ground wire provided. Pre-assembled poke-home connectors for ease of wiring. Tilt-up captive J-box doors for easy access. Trim retention (clips): Retaining clips riveted to top of reflector hold trim inside housing.

Trim retention (TOR): Two side-mounted torsion springs on the trim and two receiving brackets in the can, ensure a consistently tight fit with the ceiling.

Maximum ceiling thickness 1-1/2".

Electrical

Durable medium base porcelain socket with nickel-plated copper alloy screw shell and contact. Socket attaches to reflector to ensure proper and consistent lamp position. Thermal protection provided against improper lamp usage. Suitable for use with 120V DC or AC.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Size 6 IN
    Brand Lithonia Lighting
    Color White
    Environment Indoor
    Finish Matte
    Light Source Incandescent
    Regulatory Listing ASTM Airtight
    Mounting Type Recessed
    Product Type Downlight
    Series LC6
    Shape Round
    Voltage Rating 120
