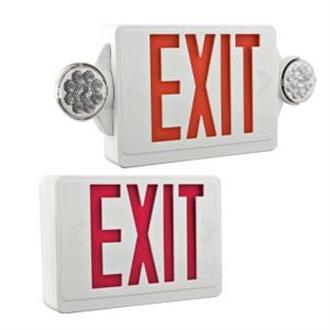

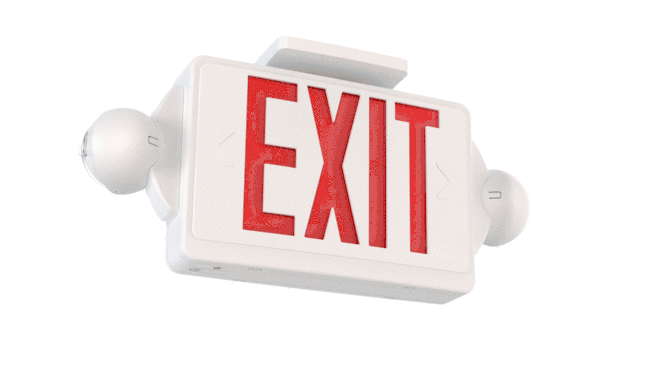

Quantum® LED Exit-Unit Combo

By Lithonia Lighting

    CA Title 20Buy America(n) Option Available
  • Overview
  • Specifications

The Quantum LHQM LED is the perfect choice with space at a premium. The combination of exit and emergency lighting also has self-diagnostic option available.


Suitable for applications requiring quick installation of both exit sign and unit equipment with a streamlined design for above-the-door applications and other tight fits.


The LHQM LED delivers 25' center-to-center spacing to meet the NFPA 101 Life Safety Code with fewer fixtures.

  • Impact- and scratch-resistant thermoplastic housing
  • Universal mounting: top, end and back
  • Ni-cad battery
  • HO battery options allow use with up to six LED remote lamp heads

Read More
Read Less
Light Source LED - Static
CCT / LED Color 4600 K
CRI 75
Product Type Emergency Exit Sign
Compliance Listing BAA, CA Title 20
Environmental Listing Damp Location
Regulatory Listing NFPA 101, NFPA 70, UL
Fixture Wattage 3
Voltage Rating 120, 277
Color White
Mounting Type Surface, Suspended
Series LHQM

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ELA-Q-LED.pdf Quantum LED emergency lighting remote lamp head 10/18/2022 View
    SPEC SHEET ELA-WG.pdf Wire guards 11/28/2022 View
    SPEC SHEET Exit Stem Kits Exit Stem Kits 10/14/2020 View
    SPEC SHEET Quantum® LED Exit-Unit Combo LHQM LED Quantum® Configurable LED exit-unit combo 11/17/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions EMCSA00704_REV_D.pdf ELA USxx stem kit instruction sheet (Rev D, 4/2015) View
    Installation Instructions EMCSA00769, Rev A SD supplemental for Quantum LED family 6/11/2020 View
    Installation Instructions LHQM-LED_Instruction-sheet.pdf LHQM LED instruction sheet_Rev J (Rev 3/2022) 3/25/2022 View
    Material Safety Data Sheet BST Nicad.PDF LHQM LED, NiCad battery - BST battery supplier (standard and HO) View
    Material Safety Data Sheet UNITECH MSDS NiCd Battery-2018.pdf LHQM LED, NiCad battery - Unitech battery supplier (standard and HO) View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures HL_659289.03POD.pdf Holophane Retail Brochure 5/11/2021 View
    Brochures Life Safety Portfolio.pdf Life Safety Portfolio 10/6/2021 View
    White Paper Contractor Select Basics and Quantum Contractor Select Basics and Quantum 4/20/2021 View
