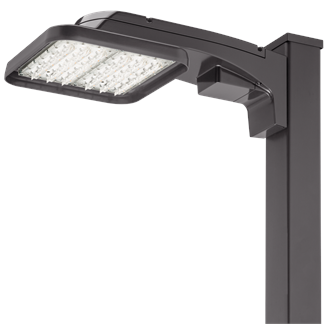

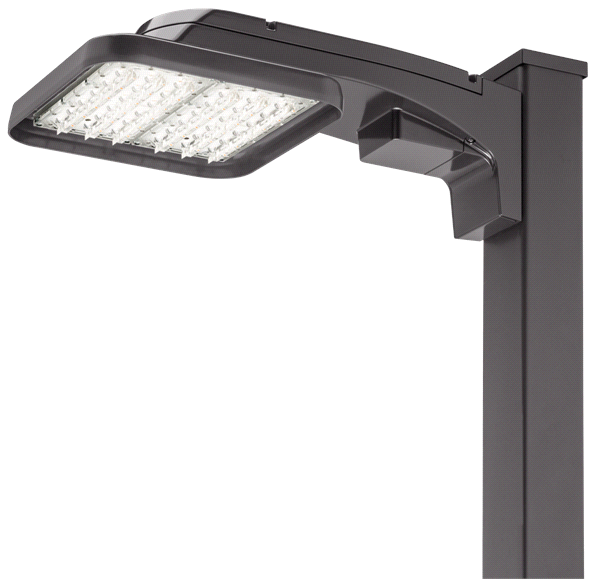

KAX1 Area Light

Area Luminaire LED Outdoor Size 1 Tilt Option Modular Design Discontinued
    DLC Standard
  • Overview
  • Specifications
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 6200 LM, 7200 LM, 8200 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM, 14,000 LM, 15,000 LM, 16,000 LM, 17,000 LM, 18,000 LM, 19,000 LM, 20,000 LM, 21,000 LM, 22,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Area Light
Compliance Listing DLC Standard, Nighttime Friendly
Environmental Listing IP66
Regulatory Listing CSA
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Black, Bronze, Gray, Green, Silver, White
Mounting Type Pole Mount
Series KAX1

Read More Read Less

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    Spec Sheet KAX1-LED.pdf KAX Area Light 4/20/2021 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions INST SHT WBA 2018 RJ521505 REV D.pdf Installation Instructions for wall bracket (WBA) 8/8/2022 View
    Installation Instructions KAX-LED Accessories Installation Instructions KAX-LED Accessories Installation Instructions 6/22/2016 View
    Installation Instructions KAX-LED Installation Instructions KAX-LED Installation Instructions 6/22/2016 View
    Templates TD-drill--8 Aeris pole drill template #8 11/20/2019 View
