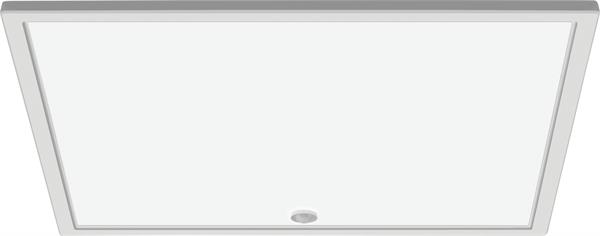

EPANL 22 RES7_Illuminated_003.jpg

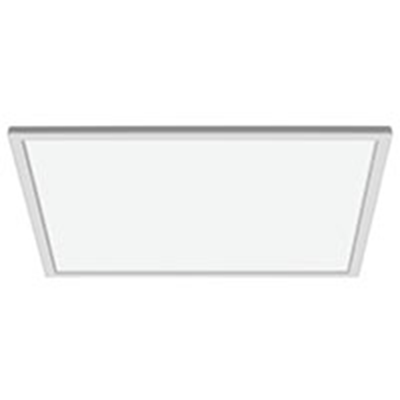

2x2_Straight_Illuminated 400 x 400.png

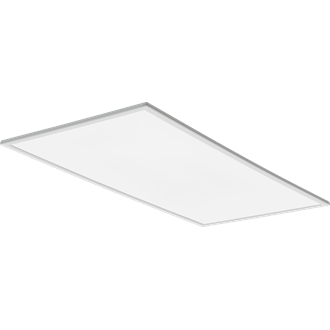

EPANL 24_Illuminated_001.png

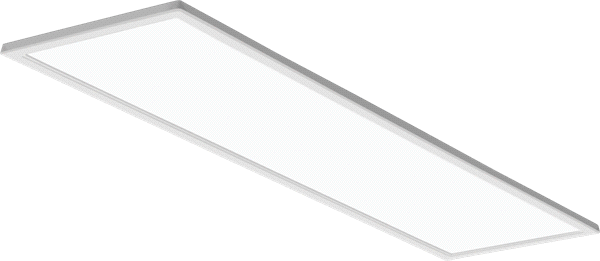

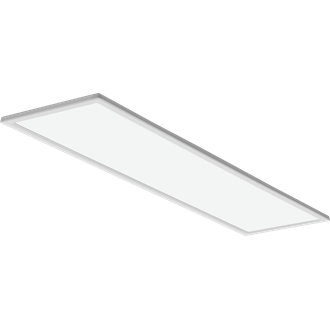

EPANL 14_Illuminated_001.png

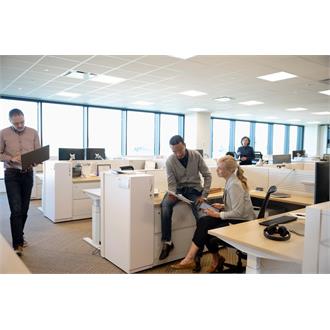

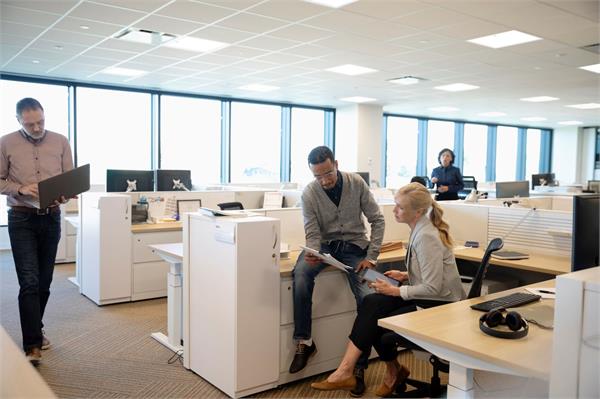

LTHI-RA-81 -002 - Office cubicles-res7.jpg

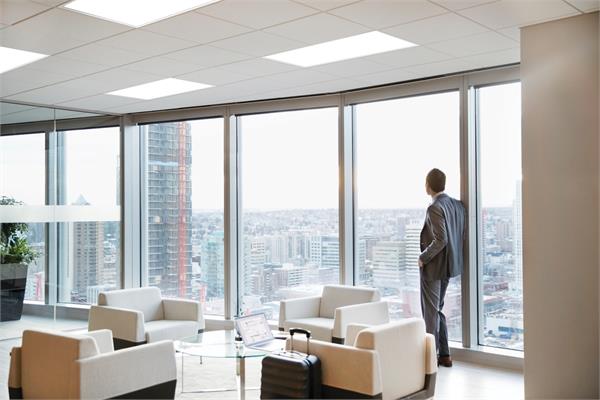

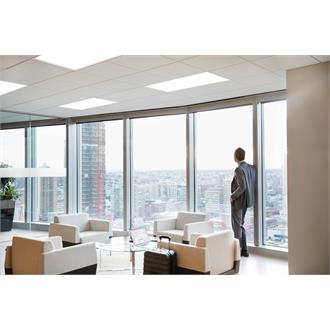

EPANL 24_Office_003.jpeg
panel

EPANL Flat Panel

Highly Configurable LED Flat Panel

By Lithonia Lighting

    DLC Standard
  • Overview
  • Specifications
The EPANL is a highly configurable LED flat panel boasting over 690,000 possible configurations available with North American production for shorter lead times. All EPANL configurations offer PMMA acrylic light guide plates and long-life LEDs. Embedding nLight networked lighting controls or SensorSwitch JOT single room controls broadens your EPANL options and makes it easy to customize your lighting for the space or task at hand. There are even tunable white configurations available! EPANL is the perfect choice for schools, offices, healthcare facilities and other commercial spaces.


EPANL is now available with the following listings!

  • ISO Class 5-9 ratings for cleanroom applications
  • NSF listed for food service and processing facilities
  • Contractor-friendly SensorSwitch JOT for single room lighting controls
Read More
Read Less
Size 1x4, 2x2, 2x4
Shape Rectangular, Square
Light Source LED - Static
Lumens 1500 LM, 2000 LM, 3000 LM, 3400 LM, 4000 LM, 4800 LM, 5400 LM, 6000 LM, 6800 LM, 7200 LM
CCT / LED Color 3500 K, 4000 K, 5000 K
CRI 80
Product Type Flat Panel
Compliance Listing Chicago Plenum, DLC Standard
Environmental Listing Damp Location, IC, NSF
Regulatory Listing CSA
Dimming Protocol 0-10V, Digital
Fixture Wattage 14, 19, 26, 27, 29, 30, 31, 33, 37, 38, 39, 45, 48, 49, 55, 65
Voltage Rating 120, 120-277, 277, 347
Color White
Mounting Type Recessed, Surface
Series EPANL, RK2EPANL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET EPANL.pdf EPANL Configurable and non-Configurable 11/21/2022 View
    SPEC SHEET SMKSH.pdf Surface Mount Kits for Troffers and Panels 2/9/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_1X4_4000LM_80CRI_35K.pdf EPANL_1X4_4000LM_80CRI_35K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_1X4_4000LM_80CRI_50K.pdf EPANL_1X4_4000LM_80CRI_50K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_2000LMHE_80CRI_40K.pdf EPANL_2000LMHE_80CRI_40K 9/19/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_2X2_2000LM_80CRI_35K.pdf EPANL_2X2_2000LM_80CRI_35K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_2X2_3400LM_80CRI_50K.pdf EPANL_2X2_3400LM_80CRI_50K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_2X2_4000LMHE_80CRI_35K.pdf EPANL_2X2_4000LMHE_80CRI_35K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_2X4_4000LM_80CRI_35K.pdf EPANL_2X4_4000LM_80CRI_35K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_2X4_4000LM_80CRI_50K.pdf EPANL_2X4_4000LM_80CRI_50K 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_2X4_4800_35K_80CRI.pdf EPANL_2X4_4800_35K_80CRI 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_2X4_6800_35K_80CRI.pdf EPANL_2X4_6800_35K_80CRI 9/6/2022 View
    Spectral Data Sheet SpectralDataSheet_LL_EPANL_3400LMHE_80CRI_35K.pdf EPANL_3400LMHE_80CRI_35K 9/19/2022 View

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions EPANL Instruction Sheet.pdf EPANL instruction sheet 4/8/2021 View
    Installation Instructions SMKSH Installation Instuctions REV B.pdf Installation guide with images 8/5/2019 View
    Material Safety Data Sheet PS1055CP-MSDS-C98-IFR26650N3000-3S1PMSDS.pdf MSDS sheet for PS1055CP View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet EPANL Series Replacement Part Kit 11.03.2022.pdf EPANL Replacement Part Kits 11/3/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Application Guide LED Panel Comparison Chart LED Panel Features and Quick Application Guide 8/10/2021 View
    Catalogs Lithonia Lighting Commercial Indoor Guide Comparison of Key Panels, Troffers and Linear Fixtures 9/11/2020 View
    Sell Sheet EPANL Sell Sheet EPANL LED Panel Series Sell Sheet 7/9/2020 View
