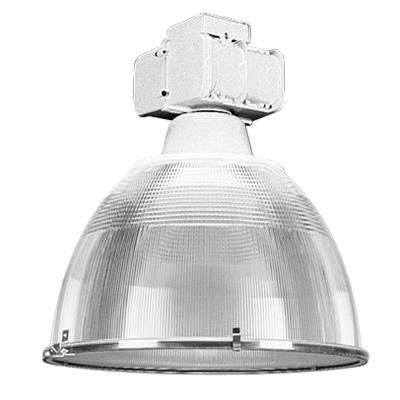

TX PA22GLE

Premium Enclosed Acrylic Optical

by Lithonia Lighting

For controlled environments that require vertical and high horizontal illumination. Ideal for retail areas, light manufacturing areas and aisles. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components are horizontally opposed and heat-sinked to ballast housing for cool operation. Integral splice box mounting flange ensures structural integrity.

Optics

Optics: Injection-molded, virgin acrylic reflector with clear, tempered glass lens enclosure. UV-stabilized reflector. Lens is tempered glass. Hinge and lens retainer latches facilitate tool-less removal for maintenance and cleaning.

Totally enclosed, gasketed lens and reflector inhibit the entrance of ambient contaminants. Meets UL lamp rupture containment specifications. Coated lamps provide optimum performance.

Electrical

Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-400W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S.

Socket: Vertically oriented mogul base protected exclusionary "PINK" socket with copper alloy, nickel-plated screw shell and center contact. For use with O-rated, protected metal halide lamps only.

Installation

Pendant splice box removable cast-aluminum box slides on integral die-cast aluminum housing mounting flange and mounts to 3/4" pendant conduit prior to ballast housing installation. Matching wire access cover accepts RELOC® modular wiring. Complete assembly meets or exceeds UL 50-pound pull test.

Optical mounting: Four 8-32 corrosion-resistant, tri-lobular, thread-rolling screws are arranged concentrically around the lamp socket. 16-gauge galvanized steel support ring with matching keyhole slots is pre-installed for vibration-resistant mounting. For areas where reflectors are subject to impact (gymnasiums, etc.) add FWG (full wireguard) to catalog number.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View
  • Photometry & Revit (BIM)

    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.
  • Specifications

    Brand Lithonia Lighting
    Color White
    CCT Not Applicable
    Environment Indoor
    Finish Gloss
    Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
    Regulatory Listing CSA, Not Applicable, UL Wet Location
    Mounting Type Pendant, Suspended
    Product Type Low Bay
    Series TX
    Voltage Rating 120, 208, 240, 277, 347, 480
