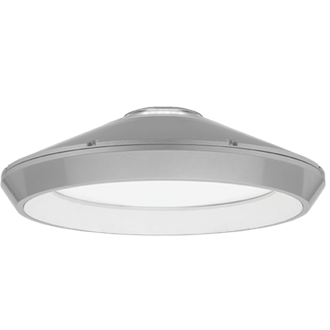

VCPG Ultimate LED

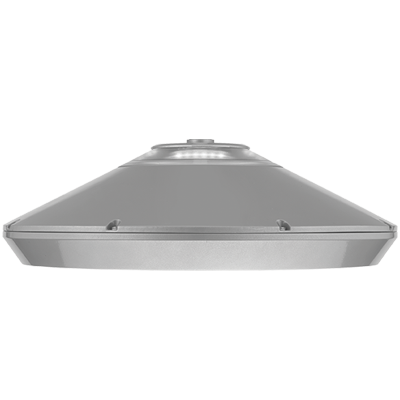

VCPG Ultimate LED Profile-View
VCPG Ultimate LED Surfafe Mount
VCPG LED PM DWHXD_Parking Garage_002.jpeg
VCPG Ultimate LED Parking Garage Luminaire
VCPG Ultimate LED Yoke Mount
VCPG Garage Application.jpg

VCPG Ultimate LED Parking Garage and Canopy Luminaire

Visually Comfortable Luminaire Ideal for Parking Garages and Canopies

By Lithonia Lighting

    CA Title 20
  • Overview
  • Specifications
Lithonia Lighting™ has taken visually comfortable parking garage lighting to the next level with the New VCPG Ultimate LED. The deep recessed lens design of VCPG Ultimate minimizes high angle glare, while its patent pending transition zone reduces the contrast ratio between the luminaire and the dark ceiling. The dedicated up-light module option further reduces this contrast, creating a more visually comfortable environment. Coupled with nLight® AIR wireless controls, VCPG provides enhanced end-user experiences and unmatched energy savings. With lumen packages up to 16,000 lumens, four optical distributions and three mounting options, this VCPG luminaire provides all the required tools to illuminate the entire parking garage.
Read More
Read Less
Shape Round
Light Source LED - Static
Lumens 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM, 13,000 LM, 14,000 LM, 15,000 LM, 16,000 LM, 17,000 LM
CCT / LED Color 3000 K, 3500 K, 4000 K, 5000 K
CRI 70, 80
Product Type Canopy
Compliance Listing CA Title 20
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 106, 108, 124, 26, 27, 33, 34, 42, 43, 55, 56, 81, 82
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Black, Bronze, Gray, Green, Silver, White
Mounting Type Pendant, Surface, Yoke
Series VCPGX

Read More Read Less
