For recreation areas, parking lots, building facades and car lots.

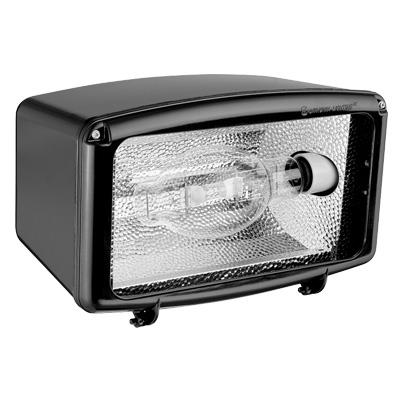

Housing: Compact, soft corner, die-cast aluminum housing and front cover. Front bezel is removable via position-oriented hinge-cam design and is fully sealed with one-piece, bonded silicone gasket. Lens is thermal- and shock-resistant clear, tempered glass.
Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.
Die-formed, anodized aluminum reflectors provide rectangular, uniform distributions. Three available beam distributions for maximum flexibility in area lighting applications.
Components mounted to cast-aluminum housing, promoting maximum heat dissipation. Ballast: High reactance, high power factor for 150W. Constant wattage autotransformer 175W and above. MH: 150W and below are standard with pulse-start ignitor technology. Super CWA Pulse Start ballasts, 88% efficient and EISA legislation compliant, are required for 151-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S.
Socket: Porcelain (medium base: 150M; mogul base: all others), horizontally oriented with copper alloy, nickel plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse rated.
Corrosion-resistant, heavy-duty, painted steel mounting yoke. External screws treated for corrosion resistance. Above-horizontal aiming standard.
Suggested Replacement Products
Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)
How to Buy
Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
as well as at more than 100 showroom or international locations and several online retailers.
Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
call us at 1.800.705.SERV (7378).
|Color||Beige, Black, Blue, Bronze, Brown, Gray, Green, Red, Silver, White, Yellow|
|CCT||2100 K, 4000 K|
|Light Source||HID - Ceramic Metal Halide, HID - High Pressure Sodium, HID - Metal Halide|
|Lumen Output||14,000 LM, 22,500 LM, 27,500 LM, 28,000 LM, 45,000 LM|
|Mounting Type||Not Applicable, Pole Mount, Tenon Slipfitter|
|Voltage Rating||120, 120-277, 208, 240, 277, 347, 480|
